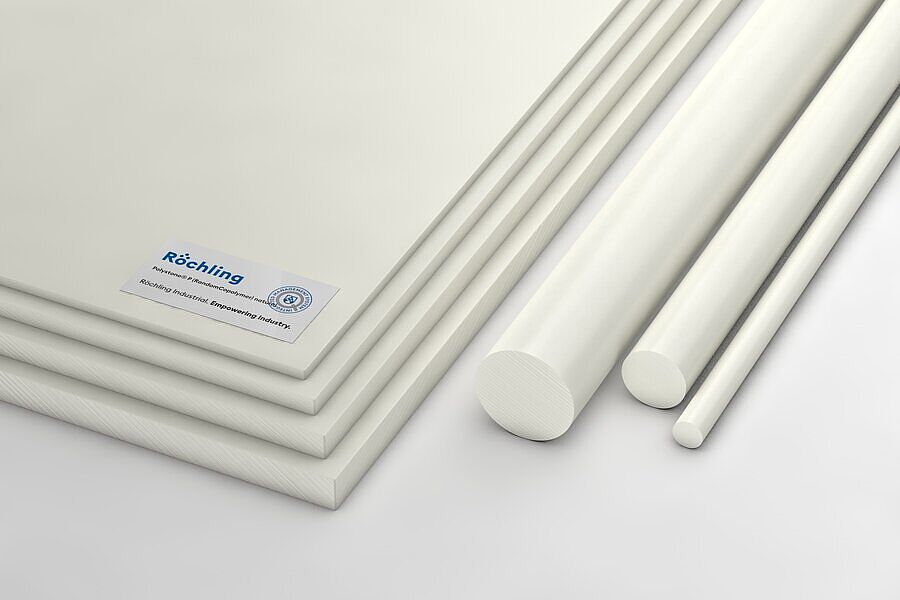

Polystone® P (RandomCopolymer) natural

PP-R

natural
welding rod
QR-Code

Characteristics

  • Alta rigidez
  • Muy buena soldabilidad
  • Resistencia a la corrosión
  • Muy alta resistencia al calor

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
358406Polystone® P (RandomCopolymer) natural extruded welding rod welding rod naturalØ 3 (+/-0,2) mm 3 mm
Stock item (no MOQ)
361535Polystone® P (RandomCopolymer) natural extruded welding rod welding rod naturalØ 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
415923Polystone® P (RandomCopolymer) natural extruded welding rod welding rod naturalØ 4 (-0,3/+0,2) mm 4 mm
No stock item (MOQ)
419328Polystone® P (RandomCopolymer) natural extruded welding rod welding rod naturalØ 3 (+/-0,2) mm 3 mm

Technical Specifications Polystone® P (RandomCopolymer) natural

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm3>0,91
Water absorptionDIN EN ISO 62%<0,1
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa>23
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa>1000
Notched impact strengthDIN EN ISO 179kJ / m2>10
Shore hardnessDIN EN ISO 868scale D>64
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C146 ... 152
Thermal conductivityDIN 52612-1W / (m * K)0,20
Thermal capacityDIN 52612kJ / (kg * K)1,70
Coefficient of linear thermal expansionDIN 5375210-6 / K120 ... 190
Service temperature, long termAverage°C-10 … 100
Service temperature, short term (max.)Average°C135
Vicat softening temperatureDIN EN ISO 306, Vicat B°C65
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,5
Dielectric dissipation factor (106 Hz)IEC 602500,00019
Volume resistivityDIN EN 62631-3-1Ω * cm>1014
Surface resistivityDIN EN 62631-3-2>1014
Dielectric strengthIEC 60243kV / mm>40
