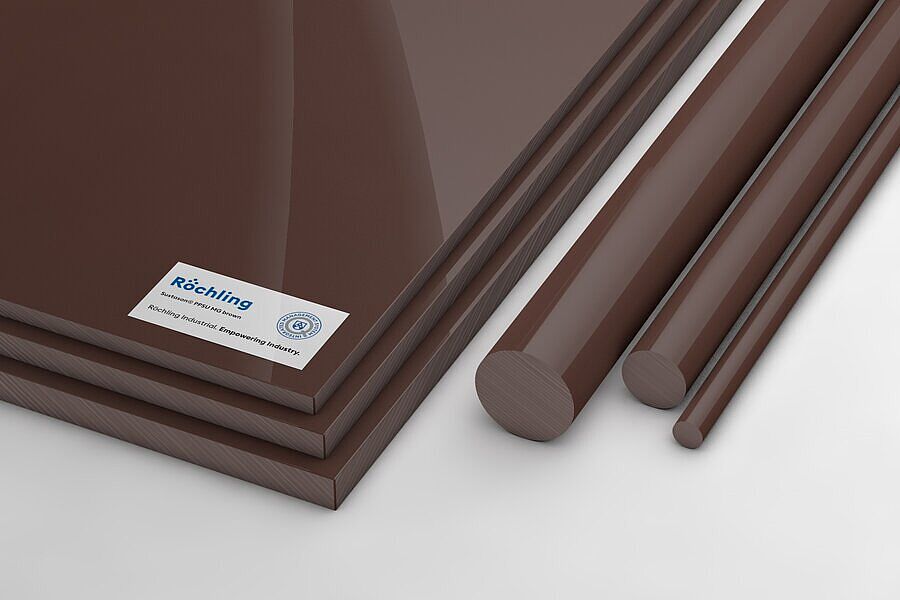

Sustason® PPSU MG brown

PPSU

Sustason® PPSU MG

The premium material Sustason® PPSU MG was specially developed for demanding applications in the healthcare industry. It is the ideal material for plastic components in the medical environment like trial implants due to its high heat and sterilisation resistance to common processes. Biocompatibility in accordance with ISO 10993-5 and/or USP Class VI directly on the semi-finished product guarantees maximum safety and compatibility with biological systems. It also impresses with its good chemical resistance and high impact strength.

BN1164 brown, similar RAL 8016
rodsheet
QR-Code

Characteristics

  • Muy buena resistencia a la esterilización.
  • Alta temperatura de deflexión del calor
  • ISO 10993-5 probada en producto semiacabado
  • Altamente resistente a impactos
  • Resistencia química
  • Altamente resistente a los rayos gamma y X.

Industries

Application Examples

Pruebas de dimensionamiento

Por ejemplo, para implantes de rodilla, implantes de cadera y encajes. Tiene una precisión y una calidad superficial muy elevadas, se mecaniza con altas tolerancias de acuerdo con los planos del cliente. El material utilizado es Sustason® PPSU MG.

Materiales para ventiladores

Los más exigentes requisitos médicos en términos de funcionalidad, fiabilidad y estabilidad del proceso Apoyo en el proceso de diseño con nuestra amplia gama de termoplásticos

Componentes de plástico para endoscopios

Reto: Menor peso que la construcción metálica anterior para que los cirujanos puedan operar durante más tiempo y con mayor delicadeza Se eligió Sustason® PPSU MG para reducir el peso Resistencia de esterilización superior a 1000 ciclos y acabado de superficie a petición del cliente Mejor tacto, ya que el plástico está más caliente que el metal Mecanizado con tolerancias muy ajustadas Disponible en varios colores

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
600847Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 50 x 3000 mm 3.000 mm 50 mm
No stock item (MOQ)
601600Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 60 x 1000 mm 1.000 mm 60 mm
No stock item (MOQ)
632430Sustason® PPSU MG brown extruded sheet sheet BN1164 brown, similar RAL 801630 x 620 x 2000 mm 2.000 mm 620 mm 30 mm
No stock item (MOQ)
632431Sustason® PPSU MG brown extruded sheet sheet BN1164 brown, similar RAL 801650 x 620 x 2000 mm 2.000 mm 620 mm 50 mm
No stock item (MOQ)
632434Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 35 x 1000 mm 1.000 mm 35 mm
No stock item (MOQ)
632435Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 35 x 3000 mm 3.000 mm 35 mm
No stock item (MOQ)
632437Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 32 x 1000 mm 1.000 mm 32 mm
No stock item (MOQ)
632438Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 32 x 3000 mm 3.000 mm 32 mm
No stock item (MOQ)
632440Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 75 x 1000 mm 1.000 mm 75 mm
No stock item (MOQ)
632441Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 75 x 3000 mm 3.000 mm 75 mm
No stock item (MOQ)
634035Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 50 x 1000 mm 1.000 mm 50 mm
No stock item (MOQ)
650213Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 45 x 1000 mm 1.000 mm 45 mm
No stock item (MOQ)
650217Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 45 x 3000 mm 3.000 mm 45 mm
No stock item (MOQ)
666985Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 25 x 3000 mm 3.000 mm 25 mm
No stock item (MOQ)
666987Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 25 x 1000 mm 1.000 mm 25 mm
No stock item (MOQ)
672556Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 70 x 3000 mm 3.000 mm 70 mm
No stock item (MOQ)
931691Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 70 x 1000 mm 1.000 mm 70 mm
No stock item (MOQ)
931697Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 100 x 1000 mm 1.000 mm 100 mm
No stock item (MOQ)
931698Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 100 x 3000 mm 3.000 mm 100 mm
No stock item (MOQ)
931955Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 80 x 1000 mm 1.000 mm 80 mm
No stock item (MOQ)
931956Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 80 x 3000 mm 3.000 mm 80 mm
No stock item (MOQ)
933150Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 40 x 3000 mm 3.000 mm 40 mm
No stock item (MOQ)
933852Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 40 x 1000 mm 1.000 mm 40 mm
No stock item (MOQ)
934893Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 60 x 3000 mm 3.000 mm 60 mm
No stock item (MOQ)
934941Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 55 x 3000 mm 3.000 mm 55 mm
No stock item (MOQ)
934942Sustason® PPSU MG brown extruded rod rod BN1164 brown, similar RAL 8016Ø 55 x 1000 mm 1.000 mm 55 mm

Technical Specifications Sustason® PPSU MG brown

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,29
Water absorptionDIN EN ISO 62%0,6
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa77
Elongation at breakDIN EN ISO 527%30
Tensile modulus of elasticityDIN EN ISO 527MPa2500
Notched impact strengthDIN EN ISO 179kJ / m210
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C-
Glass transition temperatureISO 11357-3°C220
Thermal conductivityDIN 52612-1W / (m * K)0,35
Coefficient of linear thermal expansionDIN 5375210-6 / K55
Service temperature, long termAverage°C-50 … 180
Service temperature, short term (max.)Average°C210
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C205
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,44
Volume resistivityDIN EN 62631-3-1Ohm * cm1015
Dielectric strengthIEC 60243kV / mm15
