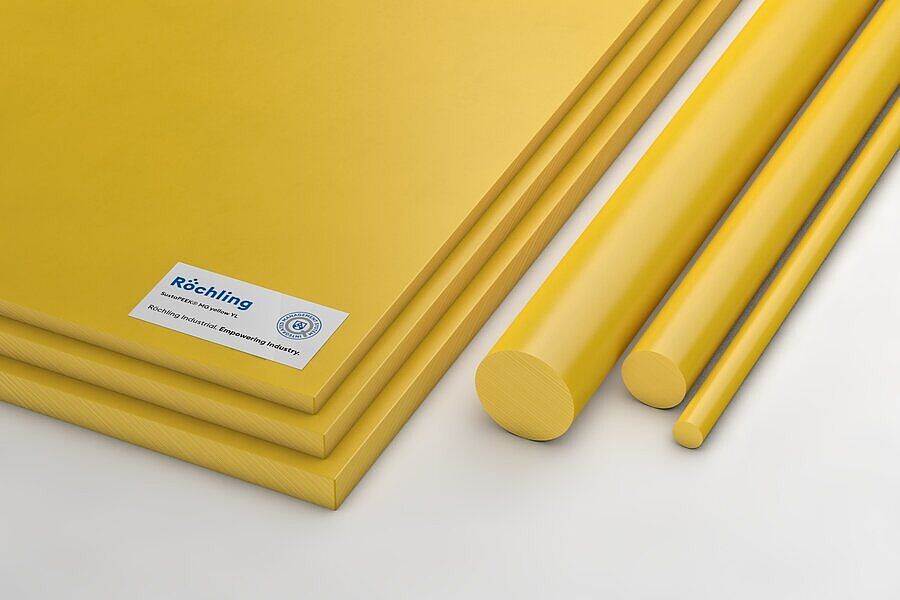

SustaPEEK MG yellow YL
PEEK
Our premium material SustaPEEK MG was developed for the demanding requirements of the healthcare industry. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.
rod
Characteristics
- Alta pureza
- Muy buena resistencia a la esterilización.
- muy alta resistencia y rigidez
- ISO 10993-5 probada en producto semiacabado
- Estable a altas temperaturas hasta 250°C en funcionamiento continuo.
- Resistencia química
Industries
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 779940 | SustaPEEK MG yellow extruded | rod | rod | Ø 35 x 3000 mm | 3.000 mm | 35 mm | ||||
| No stock item (MOQ) | 780871 | SustaPEEK MG yellow extruded | rod | rod | Ø 35 x 1000 mm | 1.000 mm | 35 mm |
Technical Specifications SustaPEEK MG yellow YL
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,35 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 112 |
| Elongation at break | DIN EN ISO 527 | % | 5 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 4000 |
| Notched impact strength | ISO 179-1/1eA | kJ / m2 | 4,2 |
| Shore hardness | DIN EN ISO 868 | scale D | 88 |
| Elastic modulus of compression | DIN EN ISO 604 | MPa | 3300 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 341 |
