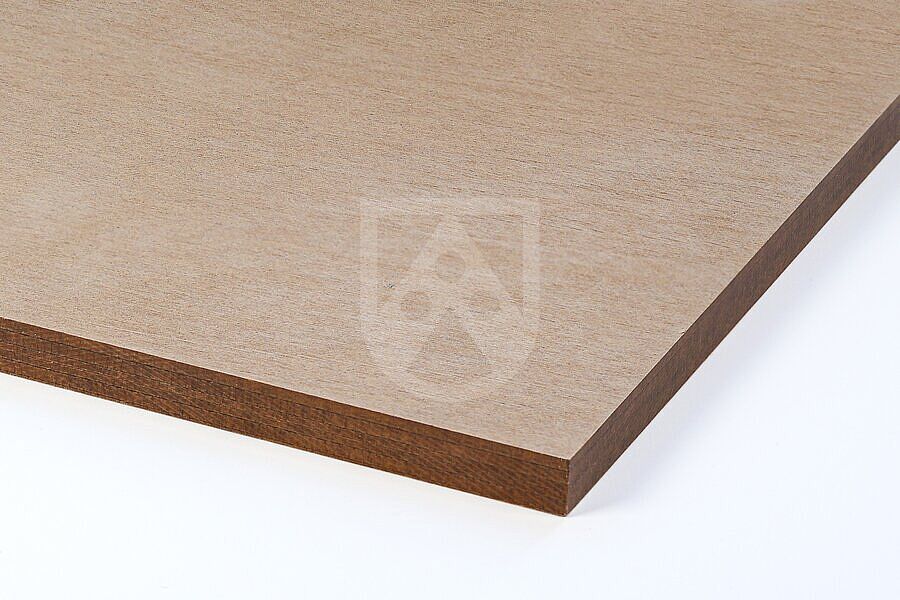

Trafoboard® HD-PH

Pressboard

Productos de aislamiento de alto rendimiento para transformadores de alta tensión en aceite

Un siglo de experiencia

Röchling lleva casi un siglo produciendo el material de aislamiento Lignostone® Transformerwood® para usar en transformadores de alta tensión. Este excelente material goza de un gran prestigio en la industria internacional de los transformadores. Con Trafoboard® HD-PH, Röchling completa su gama de materiales aislantes con una cartón prensado de alta calidad para los componentes aislantes de los transformadores de aceite de alta tensión. Trafoboard® HD-PH tiene un alto nivel de calidad, unas excelentes propiedades eléctricas y mecánicas, una elevada pureza química y unas tolerancias ajustadas. Trafoboard® HD-PH tiene una densidad de 1,15-1,35 g/cm³ y consiste en capas prensadas muy compactas hechas de celulosa pura según la norma IEC 60641, unidas de forma duradera con cola fenólica del tipo LB 3.1A.2 según la norma IEC 60763.

sheetthreaded rodscrew nut
QR-Code

Characteristics

  • Cartón prensado encolado con resina fenólica según IEC 60763-3-1 tipo LB 3.1A.2
  • Fabricado con cartón prensado de transformador prensado en caliente, 100% celulosa al sulfato sin blanquear, según IEC 60641-3-1 tipo 3.1
  • Aislamiento eléctrico
  • Buenas propiedades mecánicas

Application Examples

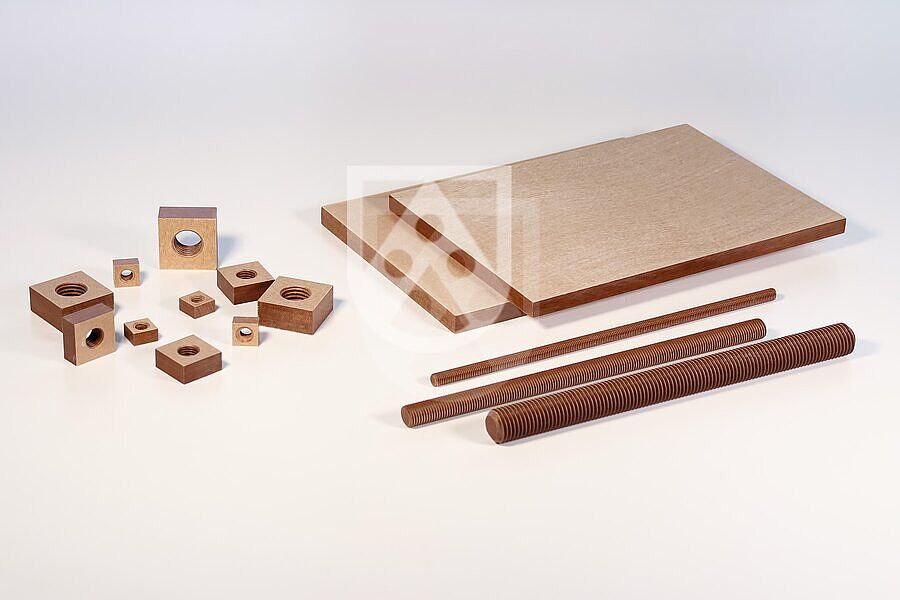

Elementos de unión de Trafoboard® HD-PH

Le ofrecemos elementos de unión Trafoboard® HD-PH fabricados en cartón prensado con unión de resina fenólica para construir transformadores de potencia en aceite. Gracias a la unión con resinas fenólicas, Trafoboard® HD-PH ofrece una elevada resistencia eléctrica y contribuye a aumentar la fiabilidad operativa de los transformadores de aceite.

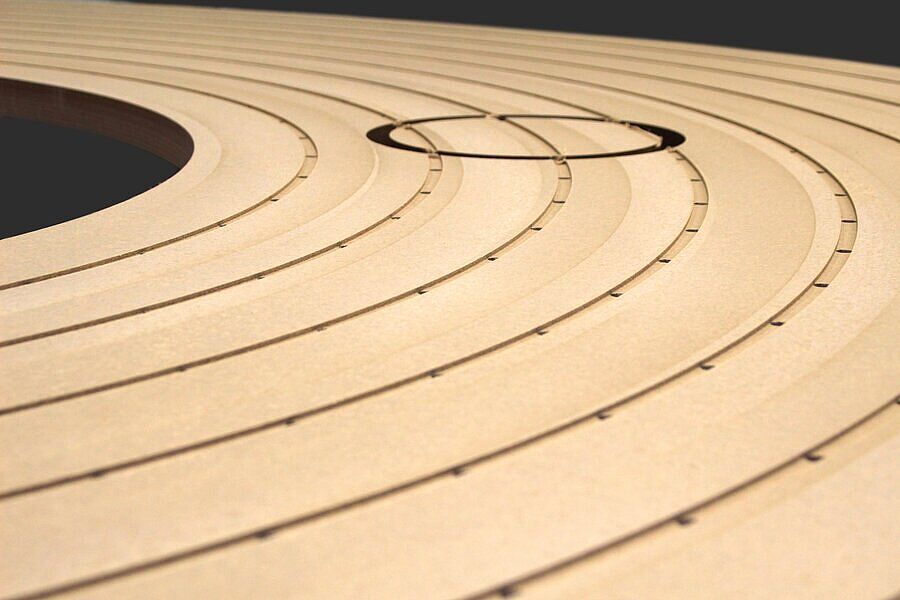

Componentes estructurales de Trafoboard®

Con Trafoboard® HD-PH, ofrecemos un cartón prensado para piezas de aislamiento en transformadores de alta tensión en aceite. Trafoboard® HD-PH combina unas excelentes propiedades eléctricas y mecánicas con una elevada pureza química. Röchling colaboró estrechamente con la Universidad de Ciencias Aplicadas de Osnabrück durante su desarrollo. Conocidos fabricantes confían en los aislantes de cartón prensado de alta calidad.
