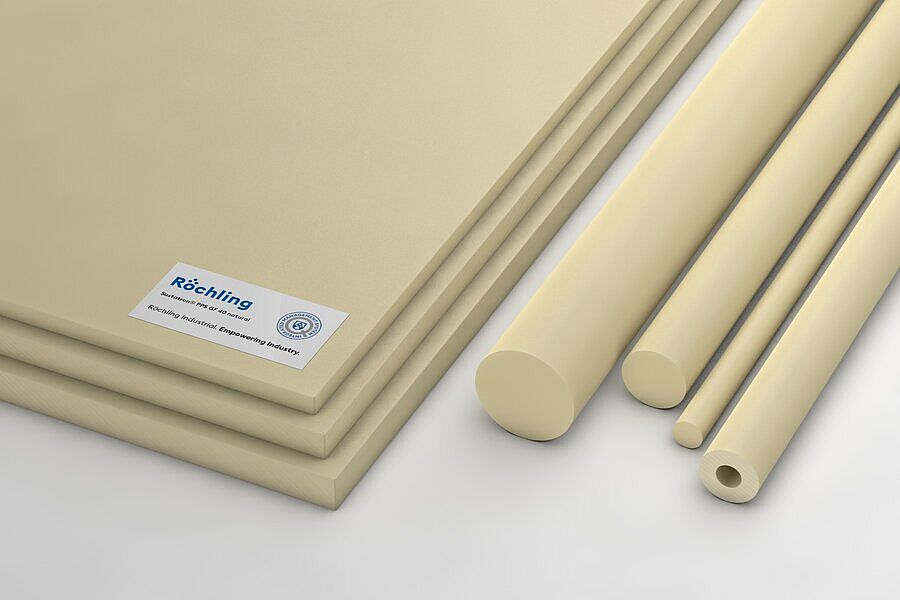

Sustatron® PPS GF 40 natural
PPS
The reinforced High Performance Thermoplast
The addition of 40 percent glass fiber by weight increases the mechanical strength and stiffness compared to unfilled PPS across the entire application temperature range. At the same time, the coefficient of thermal expansion is lower. Sustatron PPS GF40 is therefore particularly suitable for mechanically highly stressed, very dimensionally stable components, especially at temperatures above the glass transition temperature (90°C).
natural
rod
Characteristics
- Low creep tendency
- Flame retardant
- Self-extinguishing
- High continuous service temperature
- High stiffness
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 715441 | Sustatron® PPS GF 40 natural extruded | rod | rod | natural | Ø 20 x 3000 mm | 3,000 mm | 20 mm | |||
| No stock item (MOQ) | 715445 | Sustatron® PPS GF 40 natural extruded | rod | rod | natural | Ø 40 x 3000 mm | 3,000 mm | 40 mm | |||
| No stock item (MOQ) | 715447 | Sustatron® PPS GF 40 natural extruded | rod | rod | natural | Ø 50 x 3000 mm | 3,000 mm | 50 mm | |||
| No stock item (MOQ) | 715448 | Sustatron® PPS GF 40 natural extruded | rod | rod | natural | Ø 60 x 3000 mm | 3,000 mm | 60 mm | |||
| No stock item (MOQ) | 808633 | Sustatron® PPS GF 40 natural extruded | rod | rod | natural | Ø 30 x 3000 mm | 3,000 mm | 30 mm | |||
| No stock item (MOQ) | 808634 | Sustatron® PPS GF 40 natural extruded | rod | rod | natural | Ø 30 x 1000 mm | 1,000 mm | 30 mm |
Technical Specifications Sustatron® PPS GF 40 natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,65 |
| Water absorption | DIN EN ISO 62 | % | 0,0 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 90 |
| Elongation at break | DIN EN ISO 527 | % | 2 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 6500 |
| Shore hardness | DIN EN ISO 868 | scale D | 92 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 285 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 30 |
| Service temperature, long term | Average | °C | 0 … 220 |
| Service temperature, short term (max.) | Average | °C | 250 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 260 |
