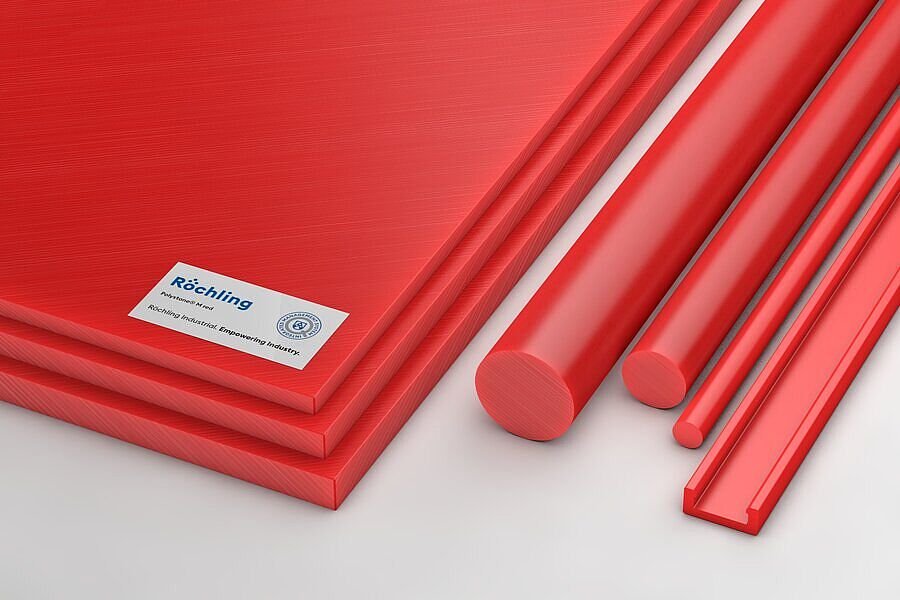

Polystone® M red

PE — PE-UHMW - PE 1000

Polystone^® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

traffic red, similar RAL 3020signal red, similar RAL 3001brown red, similar RAL 3011marron

All colors

rodprofilesheet

Characteristics

Good mechanical properties
Low coefficient of friction
Good wear properties

Industries

Application Examples

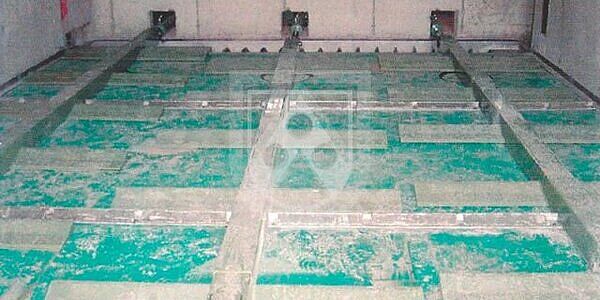

공급 구역용 슬라이딩 시트

바이오가스 설비의 접근 가능한 공급 구역인 푸시 플로어(push floor)에서는 초고분자 폴리에틸렌(PE-UHMW) 소재의 Polystone^® 슬라이딩 시트가 사용됩니다. Polystone^® 슬라이딩 시트는 수송 사슬에 위치하며 뛰어난 슬라이딩 및 마모 특성을 가집니다. 또한 견고하며, 내산성과 내구성을 가집니다.

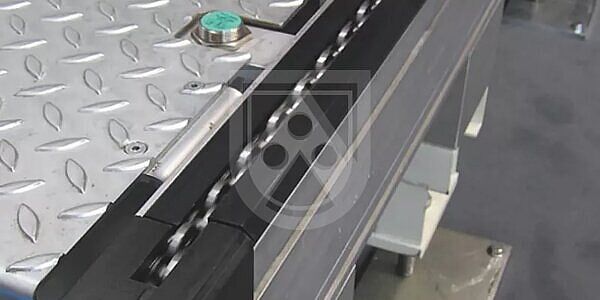

체인 가이드용 체인 가이드 프로파일

미끄럼 마찰 계수가 낮아 체인 가이드용 Polystone^® M으로 만든 압출 및 밀링 프로파일을 사용할 수 있기 때문에 체인 컨베이어에 필요한 구동 에너지를 줄이는 동시에 공정 안전성을 높일 수 있습니다. 또한, Polystone^® M은 영구적인 자체 윤활 특성을 갖습니다.

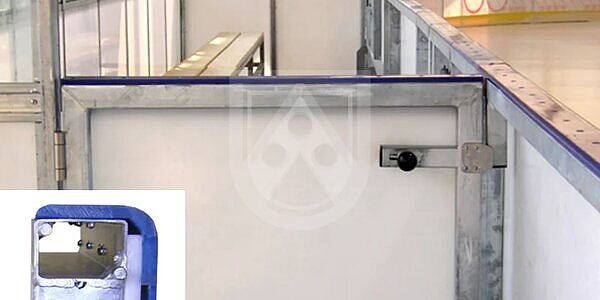

보드용 난간 프로파일

보드에 맞도록 Polystone^® M으로 만든 압출 및 밀링 난간 프로파일을 제공합니다.

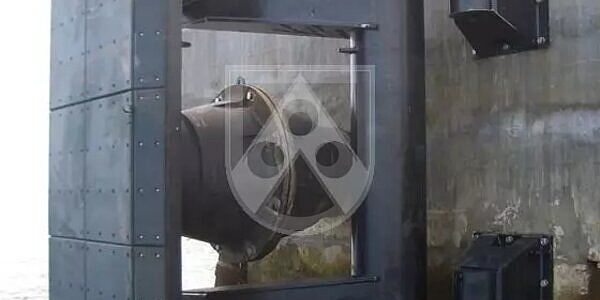

펜더(방현재)

펜더 시스템에 장착된 Polystone^®M 소재의 슬라이딩 시트는 계류 및 항만 기동, 유휴 기간 동안 부두 격벽을 보호합니다. 바로 장착 가능한 시트는 높은 내마모성과 내마멸성을 특징으로 하고, 부식과 자외선, 풍화에 강합니다.

Variants

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	216957	Polystone® M red extruded	rod	rod	traffic red, similar RAL 3020	Ø 140 x 3.000 (-0/+60) mm	3,000 mm		140 mm
No stock item (MOQ)	251834	Polystone® M red extruded	rod	rod	traffic red, similar RAL 3020	Ø 130 x 2.000 mm	2,000 mm		130 mm
No stock item (MOQ)	323414	Polystone® M red extruded	Special profile	Special profile (R549)	signal red, similar RAL 3001	4.000 x 10,48 x 9,62 mm	4,000 mm	10.48 mm	9.62 mm
No stock item (MOQ)	353639	Polystone® M red extruded	rod	rod	traffic red, similar RAL 3020	Ø 20 x 2.000 mm	2,000 mm		20 mm
No stock item (MOQ)	362727	Polystone® M red extruded	rod	rod	traffic red, similar RAL 3020	Ø 30 x 2.000 mm	2,000 mm		30 mm
No stock item (MOQ)	402628	Polystone® M red extruded	Side-Guide profile	Side-Guide profile (R013)	traffic red, similar RAL 3020	3.000 x 20 x 16 mm	3,000 mm	20 mm	16 mm
No stock item (MOQ)	436407	Polystone® M red extruded	rod	rod	brown red, similar RAL 3011	Ø 50 x 2.000 mm	2,000 mm		50 mm
No stock item (MOQ)	440375	Polystone® M red extruded	rod	rod	traffic red, similar RAL 3020	Ø 160 x 2.000 mm	2,000 mm		160 mm
No stock item (MOQ)	440647	Polystone® M red extruded	rod	rod	traffic red, similar RAL 3020	Ø 10 x 2.000 mm	2,000 mm		10 mm
No stock item (MOQ)	448979	Polystone® M red extruded	rod	rod	marron	Ø 130 x 2.000 mm	2,000 mm		130 mm
No stock item (MOQ)	459493	Polystone® M red extruded	rod	rod	marron	Ø 160 x 2.000 mm	2,000 mm		160 mm
No stock item (MOQ)	464016	Polystone® M red extruded	C-profile	C-profile (R022)	traffic red, similar RAL 3020	50.000 x 49 x 15,5 mm	50,000 mm	49 mm	15.5 mm
No stock item (MOQ)	476704	Polystone® M red extruded	rod	rod	traffic red, similar RAL 3020	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (MOQ)	477929	Polystone® M red extruded	C-profile	C-profile (R412)	traffic red, similar RAL 3020	4500 x 62 x 15 mm	4,500 mm	62 mm	15 mm
No stock item (MOQ)	217116	Polystone® M red pressed	sheet	sheet	traffic red, similar RAL 3020	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	235948	Polystone® M red pressed	sheet	sheet	marron	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	236549	Polystone® M red pressed	sheet	sheet	traffic red, similar RAL 3020	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	277148	Polystone® M red pressed	sheet	sheet	traffic red, similar RAL 3020	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	277281	Polystone® M red pressed	sheet	sheet	marron	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	315705	Polystone® M red pressed	sheet	sheet	marron	21 x 2500 x 6000 mm	6,000 mm	2,500 mm	21 mm
No stock item (MOQ)	321385	Polystone® M red pressed	sheet	sheet	traffic red, similar RAL 3020	60 x 1000 x 2000 mm	2,000 mm	1,000 mm	60 mm
No stock item (MOQ)	434172	Polystone® M red pressed	sheet	sheet	signal red, similar RAL 3001	8 x 2500 x 6000 mm	6,000 mm	2,500 mm	8 mm
No stock item (MOQ)	449931	Polystone® M red pressed	sheet	sheet	traffic red, similar RAL 3020	20,1 (-0/+0,4) x 2500 x 6000 mm	6,000 mm	2,500 mm	20.1 mm
No stock item (MOQ)	461088	Polystone® M red pressed	sheet	sheet	salmon pink, similar RAL 3022	20 x 1000 (-0/+5) x 2000 (-0/+5) mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	461231	Polystone® M red pressed	sheet	sheet	salmon pink, similar RAL 3022	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	464558	Polystone® M red pressed	sheet	sheet	traffic red, similar RAL 3020	25,2 (-0/+0,4) x 2500 x 6000 mm	6,000 mm	2,500 mm	25.2 mm
No stock item (MOQ)	469224	Polystone® M red pressed	sheet	sheet	traffic red, similar RAL 3020	20 x 1000 (-0/+5) x 2000 (-0/+5) mm	2,000 mm	1,000 mm	20 mm

Technical Specifications Polystone® M red extruded

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,93
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

	Test Method	Unit	Guideline Value
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>650
Notched impact strength	DIN EN ISO 11542	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>63

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	80

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40

Technical Specifications Polystone® M red pressed

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,93
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

	Test Method	Unit	Guideline Value
Elongation at yield stress	DIN EN ISO 527	%	>300
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>650
Notched impact strength	DIN EN ISO 11542	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>60

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 ... 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	80

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40

Downloads

Technical Data Sheet Polystone® M red extruded

Technical Data Sheet Polystone® M red pressed

Product Handling Information Sheet Polystone® M red extruded

Product Handling Information Sheet Polystone® M red pressed

Brochure - Roechling Industrial Extruded Profile - EN DE

Flyer - Polystone M Profiles - JP

Flyer - Oil and Gas Gloucester - EN
