Polystone® M aubergine

PE — PE-UHMW - PE 1000

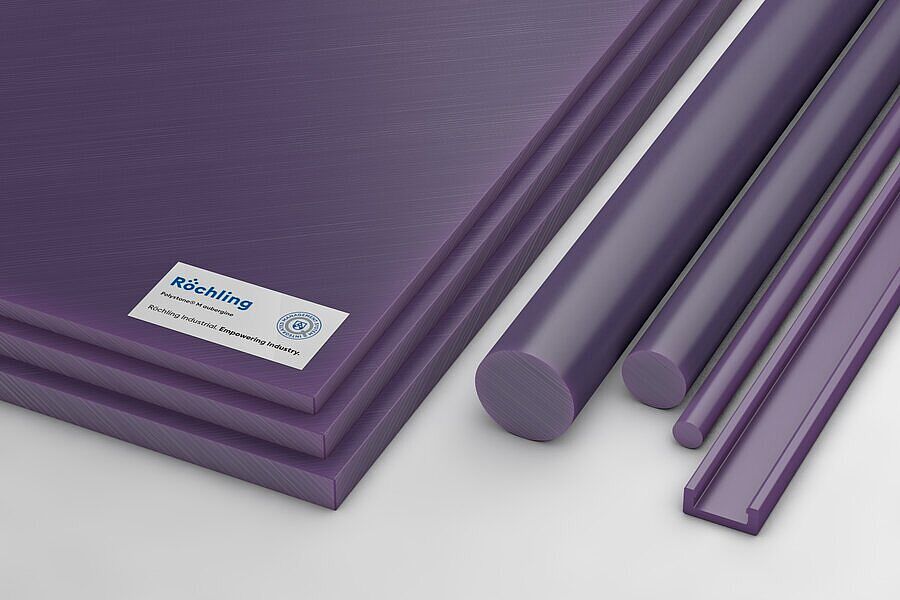

Polystone^® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

pinkvioletauberginered violet, similar Ral 4002

All colors

sheetrod

Characteristics

Good mechanical properties
Low coefficient of friction
Very good abrasion and wear resistance

Industries

Application Examples

공급 구역용 슬라이딩 시트

바이오가스 설비의 접근 가능한 공급 구역인 푸시 플로어(push floor)에서는 초고분자 폴리에틸렌(PE-UHMW) 소재의 Polystone^® 슬라이딩 시트가 사용됩니다. Polystone^® 슬라이딩 시트는 수송 사슬에 위치하며 뛰어난 슬라이딩 및 마모 특성을 가집니다. 또한 견고하며, 내산성과 내구성을 가집니다.

체인 가이드용 체인 가이드 프로파일

미끄럼 마찰 계수가 낮아 체인 가이드용 Polystone^® M으로 만든 압출 및 밀링 프로파일을 사용할 수 있기 때문에 체인 컨베이어에 필요한 구동 에너지를 줄이는 동시에 공정 안전성을 높일 수 있습니다. 또한, Polystone^® M은 영구적인 자체 윤활 특성을 갖습니다.

펜더(방현재)

펜더 시스템에 장착된 Polystone^®M 소재의 슬라이딩 시트는 계류 및 항만 기동, 유휴 기간 동안 부두 격벽을 보호합니다. 바로 장착 가능한 시트는 높은 내마모성과 내마멸성을 특징으로 하고, 부식과 자외선, 풍화에 강합니다.

보드용 난간 프로파일

보드에 맞도록 Polystone^® M으로 만든 압출 및 밀링 난간 프로파일을 제공합니다.

Variants

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	243764	Polystone® M violet/purple/pink pressed	sheet	sheet	pink	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	243765	Polystone® M violet/purple/pink pressed	sheet	sheet	violet	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	277569	Polystone® M violet/purple/pink pressed	sheet	sheet	pink	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	277570	Polystone® M violet/purple/pink pressed	sheet	sheet	violet	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	326320	Polystone® M violet/purple/pink pressed	sheet	sheet	aubergine	6.000 x 2.000 x 27 (-0/+0,4) mm	6,000 mm	2,000 mm	27 mm
No stock item (MOQ)	438026	Polystone® M violet/purple/pink pressed	sheet	sheet	aubergine	3.000 x 2.000 x 27 mm	3,000 mm	2,000 mm	27 mm
No stock item (MOQ)	438027	Polystone® M violet/purple/pink pressed	sheet	sheet	aubergine	3.000 x 2.000 x 55 mm	3,000 mm	2,000 mm	55 mm
No stock item (MOQ)	438457	Polystone® M violet/purple/pink pressed	sheet	sheet	aubergine	6.000 x 2.000 x 55 mm	6,000 mm	2,000 mm	55 mm
No stock item (MOQ)	447082	Polystone® M violet/purple/pink pressed	sheet	sheet	violet	6.000 x 2.500 x 20,1 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	449927	Polystone® M violet/purple/pink pressed	sheet	sheet	pink	6.000 x 2.500 x 20,1 mm	6,000 mm	2,500 mm	20.1 mm
No stock item (MOQ)	460983	Polystone® M violet/purple/pink pressed	sheet	sheet	red violet, similar Ral 4002	2.000 (-0/+5) x 1.000 (-0/+5) x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	461080	Polystone® M violet/purple/pink pressed	sheet	sheet	red violet, similar Ral 4002	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	461644	Polystone® M violet/purple/pink pressed	sheet	sheet	blue lilac, similar RAL 4005	2.000 (-0/+5) x 1.000 (-0/+5) x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	462219	Polystone® M violet/purple/pink pressed	sheet	sheet	blue lilac, similar RAL 4005	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	245353	Polystone® M violet/purple/pink extruded	rod	rod	heather violet, similar RAL 4003	Ø 140 x 3.000 (-0/+60) mm	3,000 mm		140 mm
No stock item (MOQ)	284832	Polystone® M violet/purple/pink extruded	rod	rod	red violet, similar Ral 4002	Ø 140 x 2.000 mm	2,000 mm		140 mm
No stock item (MOQ)	446819	Polystone® M violet/purple/pink extruded	rod	rod	violet	Ø 130 x 2.000 mm	2,000 mm		130 mm
No stock item (MOQ)	456880	Polystone® M violet/purple/pink extruded	rod	rod	pink	Ø 130 x 2.000 mm	2,000 mm		130 mm
No stock item (MOQ)	459489	Polystone® M violet/purple/pink extruded	rod	rod	violet	Ø 160 x 2.000 mm	2,000 mm		160 mm
No stock item (MOQ)	466380	Polystone® M violet/purple/pink extruded	rod	rod	heather violet, similar RAL 4003	Ø 80 x 2.000 mm	2,000 mm		80 mm

Technical Specifications Polystone® M aubergine

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,93
Water absorption	DIN EN ISO 62	%	<0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

Mechanical properties

	Test Method	Unit	Guideline Value
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>650
Notched impact strength	DIN EN ISO 11542	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>63

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	80

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ohm	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40
