Matrox® X grey
PE — PE-UHMW - PE 1000

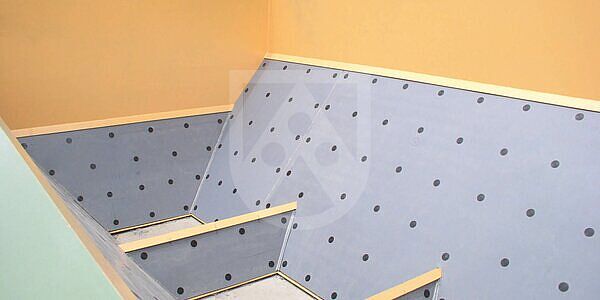

Matrox® is outstanding for its extremely low coefficient of friction and high wear resistance and so optimally meets requirements for the lining of silos and bunkers.
Matrox® X is the premium product when it comes to wear resistance and hardness and is thus outstandingly suitable for extreme conditions of use.
light grey, similar RAL 7035
rodsheet
Characteristics
- Extremely low coefficient of friction
- Very good abrasion and wear resistance
- High surface hardness
Industries
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 410723 | Matrox® X grey extruded | rod | rod | light grey, similar RAL 7035 | Ø 30 x 1.000 mm | 1,000 mm | 30 mm | |||
| No stock item (MOQ) | 471613 | Matrox® X grey extruded | rod | rod | light grey, similar RAL 7035 | Ø 15 x 1.000 mm | 1,000 mm | 15 mm | |||
| No stock item (MOQ) | 471614 | Matrox® X grey extruded | rod | rod | light grey, similar RAL 7035 | Ø 40 x 1.000 mm | 1,000 mm | 40 mm | |||
| No stock item (MOQ) | 471615 | Matrox® X grey extruded | rod | rod | light grey, similar RAL 7035 | Ø 45 x 1.000 mm | 1,000 mm | 45 mm | |||
| No stock item (MOQ) | 471616 | Matrox® X grey extruded | rod | rod | light grey, similar RAL 7035 | Ø 50 x 1.000 mm | 1,000 mm | 50 mm | |||
| No stock item (MOQ) | 368492 | Matrox® X grey pressed | sheet | sheet | light grey, similar RAL 7035 | 6.000 x 1.000 x 20 mm | 6,000 mm | 1,000 mm | 20 mm | ||
| No stock item (MOQ) | 373457 | Matrox® X grey pressed | sheet | sheet | light grey, similar RAL 7035 | 2.000 x 1.000 x 10 mm | 2,000 mm | 1,000 mm | 10 mm | ||
| No stock item (MOQ) | 373467 | Matrox® X grey pressed | sheet | sheet | light grey, similar RAL 7035 | 6.000 x 2.000 x 10 mm | 6,000 mm | 2,000 mm | 10 mm | ||
| No stock item (MOQ) | 373938 | Matrox® X grey pressed | sheet | sheet | light grey, similar RAL 7035 | 3.000 x 2.000 x 50 mm | 3,000 mm | 2,000 mm | 50 mm | ||
| No stock item (MOQ) | 450873 | Matrox® X grey pressed | sheet | sheet | light grey, similar RAL 7035 | 6.000 x 2.500 x 50 mm | 6,000 mm | 2,500 mm | 50 mm | ||
| No stock item (MOQ) | 465955 | Matrox® X grey pressed | sheet | sheet | light grey, similar RAL 7035 | 6.000 x 2.500 x 25 mm | 6,000 mm | 2,500 mm | 25 mm | ||
| No stock item (MOQ) | 480059 | Matrox® X grey pressed | sheet | sheet | light grey, similar RAL 7035 | 6.000 x 2.000 x 10 mm | 6,000 mm | 2,000 mm | 10 mm |
Technical Specifications Matrox® X grey pressed
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,98 |
| Water absorption | DIN EN ISO 62 | % | <0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Molecular weight | - | 106 g/mol | ∼ 9 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1000 |
| Notched impact strength | DIN EN ISO 11542 | kJ / m2 | >80 |
| Shore hardness | DIN EN ISO 868 | scale D | >65 |
| Wear resistance | Sand-slurry | <80 | |
| Sand Slurry | 1018 Steel=10 | ∼ 78 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -250 … 80 |
| Service temperature, short term (max.) | Average | °C | 130 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 79 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | >1014 |
