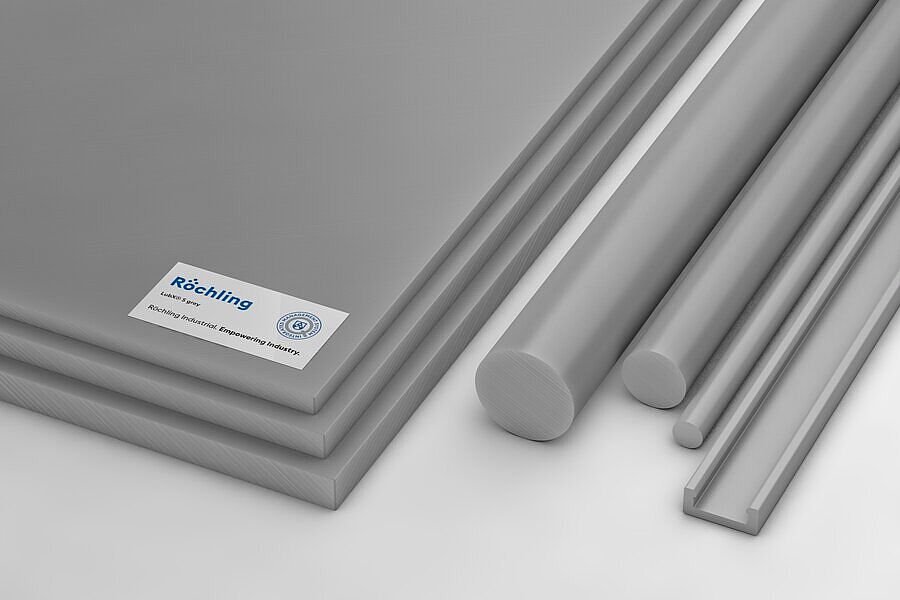

LubX® S grey
PE — PE-UHMW - PE 1000
With LubX® S, Röchling offers a highperformance material especially aligned to the sliding partner PET, which has outstanding dry-running properties at its disposal. It has been especially developed for applications in materials-handling and automation technologies.
- Compared with conventional sliding materials, conveying systems equipped with LubX® S need considerably less energy.
- The considerably lower coefficient of friction of LubX® S eliminates the possibility of the slip-stick effect (backsliding) almost completely and thus increases process stability.
dust grey, similar RAL 7037grey, similar RAL 7032
profilerodsheetsample
Characteristics
- Energy-saving
- Especially aligned to the sliding partner PET
- 10/2011/EU compliant
- Good wear resistance
Industries
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 269120 | LubX® S grey extruded | Clamp profile | Clamp profile (R351) | dust grey, similar RAL 7037 | 30.000 x 12,5 x 6,5 mm | 30,000 mm | 12.5 mm | 6.5 mm | ||
| No stock item (MOQ) | 283430 | LubX® S grey extruded | Clamp profile | Clamp profile (R351) | dust grey, similar RAL 7037 | 60.000 x 12,5 x 6,5 mm | 60,000 mm | 12.5 mm | 6.5 mm | ||
| No stock item (MOQ) | 296193 | LubX® S grey extruded | Round-Bar-Cover profile | Round-Bar-Cover profile (R425) | dust grey, similar RAL 7037 | 50.000 x 13 x 8 mm | 50,000 mm | 13 mm | 8 mm | ||
| No stock item (MOQ) | 307074 | LubX® S grey extruded | Side-Guide profile | Side-Guide profile (R013) | dust grey, similar RAL 7037 | 2.000 x 20 x 16 mm | 2,000 mm | 20 mm | 16 mm | ||
| No stock item (MOQ) | 321700 | LubX® S grey extruded | Special profile | Special profile (R513) | dust grey, similar RAL 7037 | 3.100 x 39 x 15,5 mm | 3,100 mm | 39 mm | 15.5 mm | ||
| No stock item (MOQ) | 336981 | LubX® S grey extruded | Special profile | Special profile (R360) | dust grey, similar RAL 7037 | 30.000 x 36,1 x 7 mm | 30,000 mm | 36.1 mm | 7 mm | ||
| No stock item (MOQ) | 404450 | LubX® S grey extruded | Special profile | Special profile (R561) | dust grey, similar RAL 7037 | 6.000 x 38,5 x 9 mm | 6,000 mm | 38.5 mm | 9 mm | ||
| No stock item (MOQ) | 433892 | LubX® S grey extruded | Round-Bar-Cover profile | Round-Bar-Cover profile (R095) | dust grey, similar RAL 7037 | 3.000 x 14,3 x 9,5 | 3,000 mm | 14.3 mm | 9.5 mm | ||
| No stock item (MOQ) | 433895 | LubX® S grey extruded | C-profile | C-profile (R545) | dust grey, similar RAL 7037 | 3000 x 32,7 x 16 mm | 3,000 mm | 32.7 mm | 16 mm | ||
| No stock item (MOQ) | 442364 | LubX® S grey extruded | Clamp profile | Clamp profile (R751) | dust grey, similar RAL 7037 | 50.000 x 14,5 x 12,2 mm | 50,000 mm | 14.5 mm | 12.2 mm | ||
| No stock item (MOQ) | 463797 | LubX® S grey extruded | rod | rod | dust grey, similar RAL 7037 | Ø 120 x 2.000 mm | 2,000 mm | 120 mm | |||
| No stock item (MOQ) | 472423 | LubX® S grey extruded | U-profile | U-profile (R269) | grey, similar RAL 7032 | 6.000 x 41 x 9 mm | 6,000 mm | 41 mm | 9 mm | ||
| Stock item (no MOQ) | 472774 | LubX® S grey extruded | Clamp profile | Clamp profile (R010) | dust grey, similar RAL 7037 | 60.000 x 21 x 12 mm | 60,000 mm | 21 mm | 12 mm | ||
| No stock item (MOQ) | 473639 | LubX® S grey extruded | U-profile | U-profile (R246) | dust grey, similar RAL 7037 | 6.000 x 40,1 x 10 mm | 6,000 mm | 40.1 mm | 10 mm | ||
| No stock item (MOQ) | 271520 | LubX® S grey pressed | sheet | sheet | dust grey, similar RAL 7037 | 30 (-0/+0,4) x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 30 mm | ||
| Stock item (no MOQ) | 309114 | LubX® S grey pressed | sample | sample | dust grey, similar RAL 7037 | 10 x 148 x 210 mm | 210 mm | 148 mm | 10 mm | ||
| No stock item (MOQ) | 349672 | LubX® S grey pressed | sheet | sheet | dust grey, similar RAL 7037 | 35 (-0/+0,4) x 1000 x 6000 mm | 6,000 mm | 1,000 mm | 35 mm | ||
| No stock item (MOQ) | 349709 | LubX® S grey pressed | sheet | sheet | dust grey, similar RAL 7037 | 35 x 2000 x 6000 mm | 6,000 mm | 2,000 mm | 35 mm | ||
| No stock item (MOQ) | 386534 | LubX® S grey pressed | sheet | sheet | dust grey, similar RAL 7037 | 30 x 2000 x 3000 mm | 3,000 mm | 2,000 mm | 30 mm | ||
| No stock item (MOQ) | 409582 | LubX® S grey pressed | sheet | sheet | dust grey, similar RAL 7037 | 25 (-0/+0,4) x 1000 x 3000 mm | 3,000 mm | 1,000 mm | 25 mm | ||
| No stock item (MOQ) | 442541 | LubX® S grey pressed | sheet | sheet | dust grey, similar RAL 7037 | 15 x 1000 x 3000 mm | 3,000 mm | 1,000 mm | 15 mm | ||
| No stock item (MOQ) | 442543 | LubX® S grey pressed | sheet | sheet | dust grey, similar RAL 7037 | 10 x 1000 x 3000 mm | 3,000 mm | 1,000 mm | 10 mm |
Technical Specifications LubX® S grey extruded
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 0,93 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Non-toxicity | + | ||
| Moulding Compound PE | DIN ISO 1872-1 | UHMW-PE-QCD 35-3-4 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 19 |
| Elongation at yield stress | DIN EN ISO 527 | % | >50 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | no break |
| Shore hardness | DIN EN ISO 868 | scale A | 60 |
| Shore hardness | DIN EN ISO 868 | scale D | 60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 133 ... 135 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 (*) |
| Service temperature, long term | Average | °C | -150 ... 80 (*) |
| Service temperature, short term (max.) | Average | °C | 130 (*) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | ≥1015 |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | ≥1014 |
