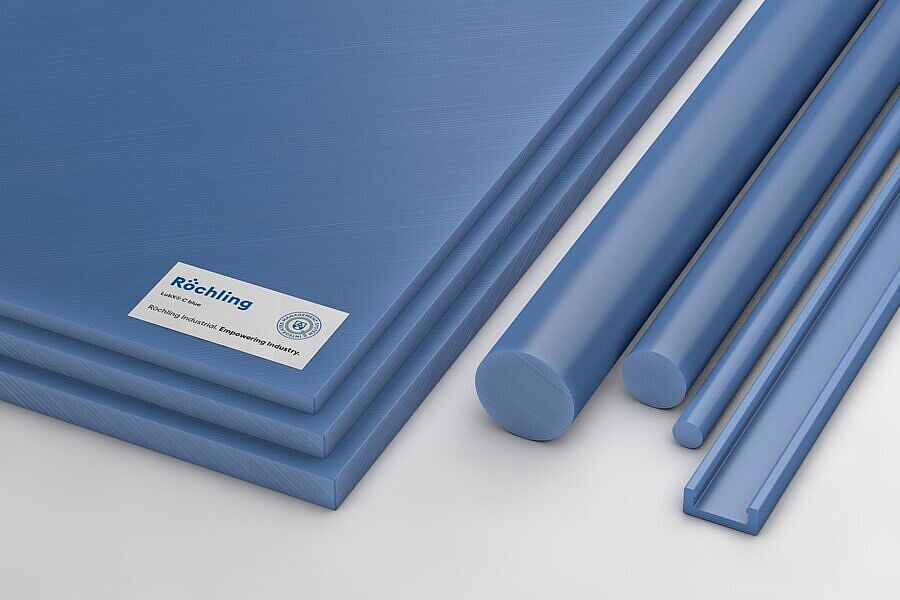

LubX® C blue

PE — PE-UHMW - PE 1000

With LubX® C we offer a high performance material especially aligned to POM and steel, which has outstanding dry-running properties at its disposal. They have been especially developed for applications in materials-handling and automation technologies.

  • Compared with conventional sliding materials, conveying systems equipped with LubX® C need considerably less energy.
  • The considerably lower coefficient of friction of LubX® C eliminates the possibility of the slip-stick effect (backsliding) almost completely and thus increases process stability.
brilliant blue, similar RAL 5007pantone blue 072 Cultramarine blue, similar RAL 5002
profilerodsheet
QR-Code

Characteristics

  • Energy-saving
  • Especially aligned to POM and Steel
  • FDA/21CFR177.1520 compliant
  • Noise-reducing
  • Coefficient of friction with POM as sliding partner up to 75% less than of PE-UHMW
  • Coefficient of friction with steel as sliding partner up to 60% less than of PE-UHMW
  • Food compliant according to 10/2011/EU, 1935/2004/EC, FDA

Industries

Application Examples

+

나선형 프로스터용 슬라이드 레일

LubX® 소재로 제작된 프로파일은 냉동 피자용 나선형 프로스터 제조에 사용됩니다. 이 소재는 뛰어난 슬라이드 특성으로 인해 필요한 컨베이어 전력과 사용 에너지를 절감할 수 있습니다. LubX®는 규정 10/2011/EU 및 FDA의 요구사항을 충족하여, 식품류와의 직접 접촉에 적합합니다. 적용 분야에 따라 LubX® CV, LubX® C, LubX® S, LubX® Ast 블랙을 권장합니다.

+

음료 병입 플랜트용 슬라이딩 부품

LubX® 제품군은 컨베이어 기술을 위해 특별히 개발된 강력한 슬라이딩 소재를 제공합니다. 음료 병입 플랜트와 같이 LubX®가 장착된 컨베이어 시스템의 뛰어난 슬라이딩 특성으로 인해 에너지 소모가 줄어들고, 슬립 스틱 현상을 방지하며, 컨베이어 공정의 안정성이 개선됩니다. 적용 분야에 따라 LubX® CV, LubX® C, LubX® S, LubX® Ast black을 권장합니다.

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		308330LubX® C blue extruded U-profile U-profile (R023) brilliant blue, similar RAL 500750.000 x 13 x 12 mm 50,000 mm 13 mm 12 mm
No stock item (MOQ)		318016LubX® C blue extruded Clamp profile Clamp profile (R543) brilliant blue, similar RAL 500725.000 x 15,81 x 5,8 mm 25,000 mm 15.81 mm 5.8 mm
No stock item (MOQ)		339118LubX® C blue extruded Clip profile Clip profile (R584) brilliant blue, similar RAL 50073.000 x 39,1 x 23,7 mm 3,000 mm 39.1 mm 23.7 mm
No stock item (MOQ)		352221LubX® C blue extruded U-profile U-profile (R023) brilliant blue, similar RAL 500760.000 x 13 x 12 mm 60,000 mm 13 mm 12 mm
No stock item (MOQ)		365879LubX® C blue extruded Special profile Special profile (R335) brilliant blue, similar RAL 50073.800 x 40 x 27 mm 3,800 mm 40 mm 27 mm
No stock item (MOQ)		365880LubX® C blue extruded Special profile Special profile (R335) brilliant blue, similar RAL 50074.800 x 40 x 27 mm 4,800 mm 40 mm 27 mm
No stock item (MOQ)		365881LubX® C blue extruded Special profile Special profile (R335) brilliant blue, similar RAL 50075.600 x 40 x 27 mm 5,600 mm 40 mm 27 mm
No stock item (MOQ)		369326LubX® C blue extruded Special profile Special profile (R336) brilliant blue, similar RAL 50075.750 x 40 x 27 mm 5,750 mm 40 mm 27 mm
No stock item (MOQ)		402416LubX® C blue extruded rod rod brilliant blue, similar RAL 5007Ø 25 x 1.000 mm 1,000 mm 25 mm
No stock item (MOQ)		407066LubX® C blue extruded Special profile Special profile (R336) brilliant blue, similar RAL 50072.780 x 40 x 27 mm 2,780 mm 40 mm 27 mm
No stock item (MOQ)		439002LubX® C blue extruded U-profile U-profile (R219) brilliant blue, similar RAL 500760.000 x 13 x 13 mm 60,000 mm 13 mm 13 mm
No stock item (MOQ)		471840LubX® C blue extruded rod rod brilliant blue, similar RAL 5007Ø 30 x 3.050 mm 3,050 mm 30 mm
No stock item (MOQ)		471841LubX® C blue extruded rod rod brilliant blue, similar RAL 5007Ø 40 x 3.050 mm 3,050 mm 40 mm
No stock item (MOQ)		471842LubX® C blue extruded rod rod brilliant blue, similar RAL 5007Ø 60 x 3.050 mm 3,050 mm 60 mm
No stock item (MOQ)		306524LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500710 x 1000 x 2000 mm 2,000 mm 1,000 mm 10 mm
No stock item (MOQ)		308500LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500730 x 1000 x 2000 mm 2,000 mm 1,000 mm 30 mm
No stock item (MOQ)		309305LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500720 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 20 mm
No stock item (MOQ)		309306LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500725 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 25 mm
No stock item (MOQ)		309307LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500730 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 30 mm
No stock item (MOQ)		309661LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500720 x 2500 x 6000 mm 6,000 mm 2,500 mm 20 mm
No stock item (MOQ)		309664LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500725 x 2500 x 6000 mm 6,000 mm 2,500 mm 25 mm
No stock item (MOQ)		309666LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500730 x 2500 x 6000 mm 6,000 mm 2,500 mm 30 mm
No stock item (MOQ)		310826LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500715 x 1000 x 2000 mm 2,000 mm 1,000 mm 15 mm
No stock item (MOQ)		310835LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500715 x 2000 x 6000 mm 6,000 mm 2,000 mm 15 mm
No stock item (MOQ)		315971LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500725 x 1000 x 2000 mm 2,000 mm 1,000 mm 25 mm
No stock item (MOQ)		317418LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500735 x 2500 x 6000 mm 6,000 mm 2,500 mm 35 mm
No stock item (MOQ)		327532LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500730 x 2000 x 6000 mm 6,000 mm 2,000 mm 30 mm
No stock item (MOQ)		330069LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500720 x 1000 x 2000 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		330345LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500710 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 10 mm
No stock item (MOQ)		330346LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500712 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 12 mm
No stock item (MOQ)		330423LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500710 x 2000 x 6000 mm 6,000 mm 2,000 mm 10 mm
No stock item (MOQ)		330425LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500720 x 2000 x 6000 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		330427LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500725 x 2000 x 6000 mm 6,000 mm 2,000 mm 25 mm
No stock item (MOQ)		330533LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500710 x 2500 x 6000 mm 6,000 mm 2,500 mm 10 mm
No stock item (MOQ)		330538LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500712 x 2500 x 6000 mm 6,000 mm 2,500 mm 12 mm
No stock item (MOQ)		337644LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500740 x 1000 x 2000 mm 2,000 mm 1,000 mm 40 mm
No stock item (MOQ)		338984LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500740 x 2000 x 6000 mm 6,000 mm 2,000 mm 40 mm
No stock item (MOQ)		341700LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500735 x 1000 x 2000 mm 2,000 mm 1,000 mm 35 mm
No stock item (MOQ)		355715LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500715 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 15 mm
No stock item (MOQ)		356994LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500715 x 2500 x 6000 mm 6,000 mm 2,500 mm 15 mm
No stock item (MOQ)		400145LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500722,5 x 2000 x 6000 mm 6,000 mm 2,000 mm 22.5 mm
No stock item (MOQ)		400146LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500713,5 x 2000 x 6000 mm 6,000 mm 2,000 mm 13.5 mm
No stock item (MOQ)		400147LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500735,5 x 2000 x 6000 mm 6,000 mm 2,000 mm 35.5 mm
No stock item (MOQ)		430565LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500710 (-0/+0,4) x 1000 x 2000 mm 2,000 mm 1,000 mm 10 mm
No stock item (MOQ)		444268LubX® C blue pressed sheet sheet brilliant blue, similar RAL 50078 x 1000 x 2000 mm 2,000 mm 1,000 mm 8 mm
No stock item (MOQ)		444600LubX® C blue pressed sheet sheet brilliant blue, similar RAL 50078 x 2000 x 6000 mm 6,000 mm 2,000 mm 8 mm
No stock item (MOQ)		448804LubX® C blue pressed sheet sheet pantone blue 072 C20 x 2500 x 6000 mm 6,000 mm 2,500 mm 20 mm
No stock item (MOQ)		463882LubX® C blue pressed sheet sheet ultramarine blue, similar RAL 500220 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 20 mm
No stock item (MOQ)		464200LubX® C blue pressed sheet sheet ultramarine blue, similar RAL 500220 x 2500 x 6000 mm 6,000 mm 2,500 mm 20 mm
No stock item (MOQ)		466874LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500725,4 x 2500 x 6000 mm 6,000 mm 2,500 mm 25.4 mm
No stock item (MOQ)		466876LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500738,1 x 2500 x 6000 mm 6,000 mm 2,500 mm 38.1 mm
No stock item (MOQ)		470522LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500735 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 35 mm
No stock item (MOQ)		471730LubX® C blue pressed sheet sheet brilliant blue, similar RAL 50078 x 1250 (+/-30) x 3000 (-0/+100) mm 3,000 mm 1,250 mm 8 mm
No stock item (MOQ)		471757LubX® C blue pressed sheet sheet brilliant blue, similar RAL 50078 x 2500 x 6000 mm 6,000 mm 2,500 mm 8 mm
No stock item (MOQ)		501863LubX® C blue pressed sheet sheet brilliant blue, similar RAL 500750 x 1000 x 2000 mm 2,000 mm 1,000 mm 50 mm

Technical Specifications LubX® C blue extruded

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm30,93
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Non-toxicity+
Moulding Compound PEDIN ISO 1872-1UHMW-PE-QCD 35-3-4

Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa19
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa650
Notched impact strengthDIN EN ISO 179kJ / m2no break
Shore hardnessDIN EN ISO 868scale D60
Sliding partner POM MOD A (0,25 m/s - 0,25 MPa)REP - Tribology - Test0,08
Sliding partner POM MOD B (0,25 m/s - 0,25 MPa)REP - Tribology - Test0,11

Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C133 – 135
Coefficient of linear thermal expansionDIN 5375210-6 / K150 - 230 (*)
Service temperature, long termAverage°C-150 … 80 (*)
Service temperature, short term (max.)Average°C130 (*)

Test MethodUnitGuideline Value
Volume resistivityDIN EN 62631-3-1Ω * cm>1015
Surface resistivityDIN EN 62631-3-2Ω>1014

Technical Specifications LubX® C blue pressed

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm30,93
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Non-toxicity+
Moulding Compound PEDIN ISO 1872-1UHMW-PE-QCD 35-3-4

Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa20
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa500
Notched impact strengthDIN EN ISO 179kJ / m2no break
Shore hardnessDIN EN ISO 868scale A60
Shore hardnessDIN EN ISO 868scale D60
Sliding partner POM MOD A (0,25 m/s - 0,25 MPa)REP - Tribology - Test0,08
Sliding partner POM MOD B (0,25 m/s - 0,25 MPa)REP - Tribology - Test0,11

Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C133 ... 135
Coefficient of linear thermal expansionDIN 5375210-6 / K150 - 230 (*)
Service temperature, long termAverage°C-150 ... 80 (*)
Service temperature, short term (max.)Average°C130 (*)

Test MethodUnitGuideline Value
Volume resistivityDIN EN 62631-3-1Ω * cm>1015
Volume resistivityDIN EN 62631-3-1Ω * cm>1015
Surface resistivityDIN EN 62631-3-2Ω>1014

Downloads

Technical Data Sheet LubX® C blue extruded
Technical Data Sheet LubX® C blue pressed

Product Handling Information Sheet LubX® C blue pressed

FDA Compliance LubX® C blue extruded
EC Compliance LubX® C blue pressed
FDA Compliance LubX® C blue pressed
