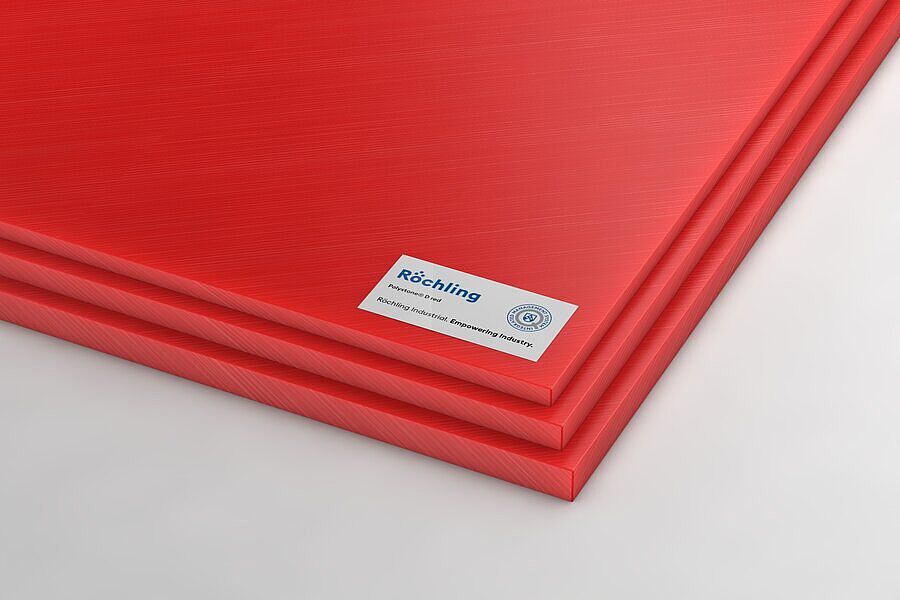

Polystone® D red
PE — PE-HD - PE 500
Polystone® D is a high-molecular polyethylene (PE-HMW/PE 500) which is outstanding for its good mechanical properties such as scratch- and cut resistance and excellent acid resistance. The material is used in various branches of industry such as the foodstuffs and bottling industry or in medical technology.
traffic red, similar RAL 3020signal red, similar RAL 3001
sheet

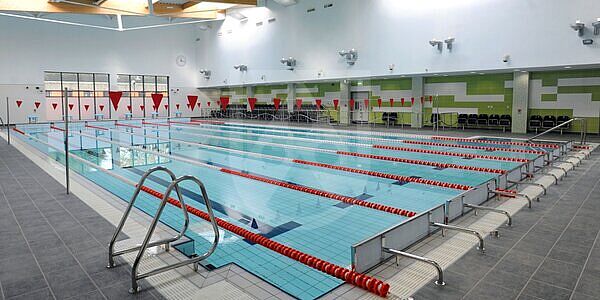

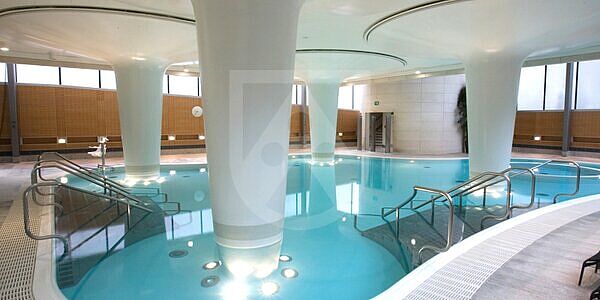

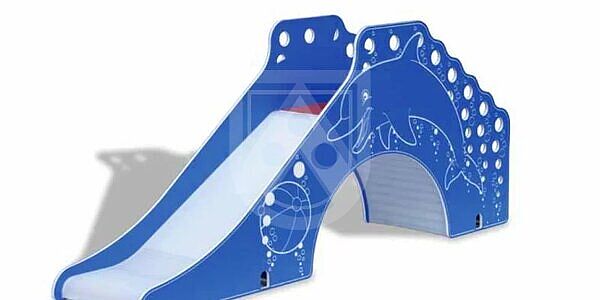

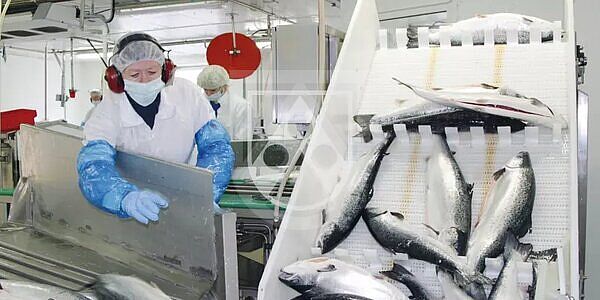

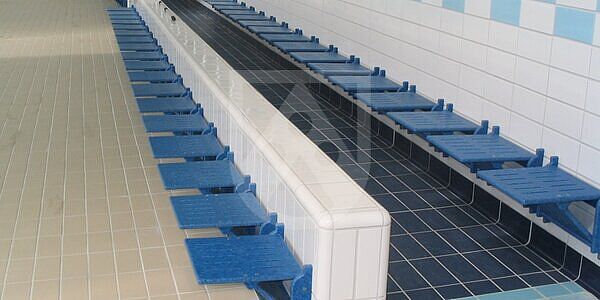

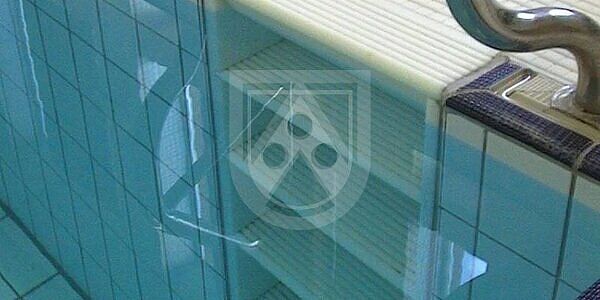

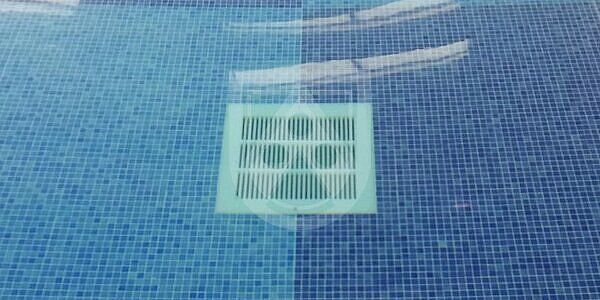

Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 241012 | Polystone® D non-twisting red pressed | sheet | sheet | traffic red, similar RAL 3020 | 40 x 1000 x 2500 mm | 2,500 mm | 1,000 mm | 40 mm | ||
| No stock item (MOQ) | 241014 | Polystone® D non-twisting red pressed | sheet | sheet | traffic red, similar RAL 3020 | 40 x 1000 x 2200 mm | 2,200 mm | 1,000 mm | 40 mm | ||
| No stock item (MOQ) | 241026 | Polystone® D non-twisting red pressed | sheet | sheet | traffic red, similar RAL 3020 | 40 x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 40 mm | ||
| No stock item (MOQ) | 474977 | Polystone® D UV-stabilized red pressed | sheet | sheet | signal red, similar RAL 3001 | 12 x 1250 (+/-30) x 6000 mm | 6,000 mm | 1,250 mm | 12 mm | ||
| No stock item (MOQ) | 475152 | Polystone® D UV-stabilized red pressed | sheet | sheet | signal red, similar RAL 3001 | 12 x 2500 x 6000 mm | 6,000 mm | 2,500 mm | 12 mm |
Technical Specifications Polystone® D red
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,95 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >27 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1200 |
| Shore hardness | DIN EN ISO 868 | scale D | 65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -100 … 80 |
| Service temperature, short term (max.) | Average | °C | 80 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 79 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,3 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,0002 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
