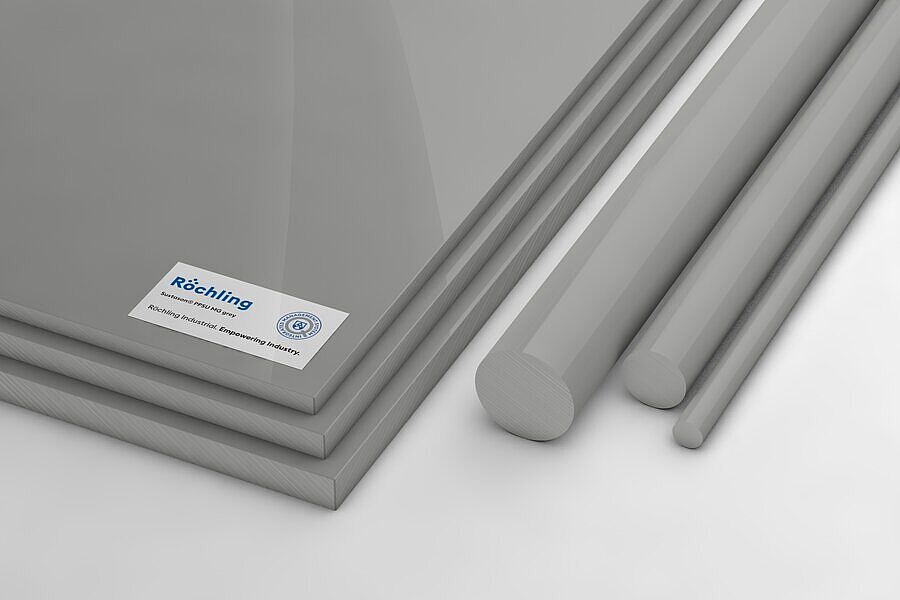

Sustason® PPSU MG grey

PPSU

Our premium material especially for medical devices

Sustason® PPSU MG was specially developed for demanding applications in the healthcare industry. It is the ideal material for plastic components in the medical environment like trial implants due to its high heat and sterilisation resistance to common processes. Biocompatibility in accordance with ISO 10993-5 and/or USP Class VI directly on the semi-finished product guarantees maximum safety and compatibility with biological systems. It also impresses with its good chemical resistance and high impact strength.

GY1037 grey, similar RAL 7004

rodsheet

Characteristics

Good sterilisation resistance
High heat deflection temperature
ISO 10993-5 tested on semi-finished product
High impact resistance
Chemical resistant
High resistance to gamma and x-rays

Industries

Healthcare

Application Examples

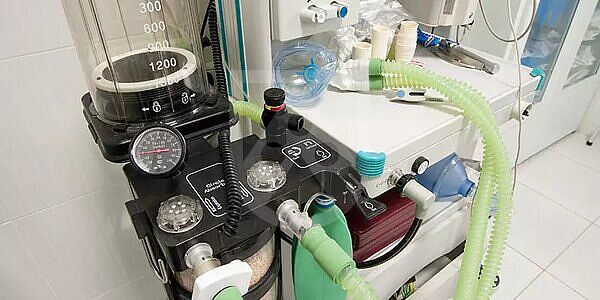

인공호흡기용 소재

Our wide range of thermoplastics supports compliance with the highest medical requirements in terms of functionality, reliability and process stability. Materials such as Sustason® PPSU MG and Polystone® P HG are specifically selected to fulfil these standards. We offer support during the design process to ensure that your products meet the requirements.

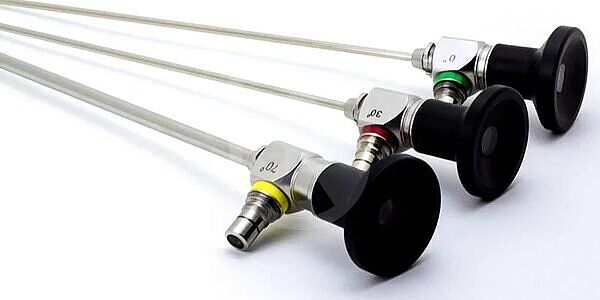

내시경용 플라스틱 부품

도전 과제: 외과의가 더 오래 정교한 수술을 할 수 있도록 기존의 금속 기구보다 무게가 가벼워야 함 무게를 줄이기 위해 Sustason^®PPSU MG 선택 1,000 사이클 이상의 내멸균성 + 고객 요청에 따른 표면 마감 접촉시 금속보다 따뜻한 느낌의 플라스틱 엄격한 허용 오차로 기계 가공 다양한 색상으로 공급

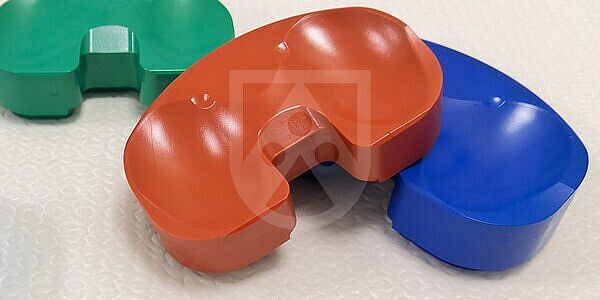

크기 조정용 견본품

예를 들어 무릎 임플란트, 고관절 임플란트 및 소켓에 사용됩니다. 정밀도와 표면 품질이 매우 뛰어나며 고객 도면에 따라 높은 공차로 가공됩니다. 사용되는 소재는 Sustason^® PPSU MG입니다.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	601499	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 12 x 3000 mm	3,000 mm		12 mm
No stock item (MOQ)	611762	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 12 x 1000 mm	1,000 mm		12 mm
No stock item (MOQ)	632419	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	30 x 620 x 2000 mm	2,000 mm	620 mm	30 mm
No stock item (MOQ)	632422	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	50 x 620 x 2000 mm	2,000 mm	620 mm	50 mm
No stock item (MOQ)	632494	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 35 x 1000 mm	1,000 mm		35 mm
No stock item (MOQ)	632495	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 35 x 3000 mm	3,000 mm		35 mm
No stock item (MOQ)	639826	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 55 x 1000 mm	1,000 mm		55 mm
No stock item (MOQ)	668582	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (MOQ)	717833	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (MOQ)	717837	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (no MOQ)	808073	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 25 x 3000 mm	3,000 mm		25 mm
No stock item (no MOQ)	808074	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 40 x 3000 mm	3,000 mm		40 mm
No stock item (MOQ)	808075	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 50 x 3000 mm	3,000 mm		50 mm
No stock item (MOQ)	808610	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	808611	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	808612	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	808840	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (MOQ)	809865	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	50 x 620 x 3000 mm	3,000 mm	620 mm	50 mm
No stock item (MOQ)	920140	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 60 x 1000 mm	1,000 mm		60 mm
Stock item (no MOQ)	920141	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (MOQ)	926829	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 75 x 1000 mm	1,000 mm		75 mm
No stock item (MOQ)	926830	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 75 x 3000 mm	3,000 mm		75 mm
No stock item (MOQ)	926831	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 90 x 1000 mm	1,000 mm		90 mm
No stock item (MOQ)	926832	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 90 x 3000 mm	3,000 mm		90 mm
No stock item (MOQ)	928692	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 20 x 3000 mm	3,000 mm		20 mm
No stock item (MOQ)	930214	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 65 x 1000 mm	1,000 mm		65 mm
No stock item (no MOQ)	930216	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 65 x 3000 mm	3,000 mm		65 mm
No stock item (MOQ)	930275	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	12 x 620 x 1000 mm	1,000 mm	620 mm	12 mm
No stock item (MOQ)	931229	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (MOQ)	931230	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 32 x 3000 mm	3,000 mm		32 mm
No stock item (MOQ)	931582	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	12 x 620 x 3000 mm	3,000 mm	620 mm	12 mm
No stock item (MOQ)	931583	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	10 x 620 x 1000 mm	1,000 mm	620 mm	10 mm
No stock item (MOQ)	931584	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	10 x 620 x 3000 mm	3,000 mm	620 mm	10 mm
No stock item (MOQ)	931586	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	50 x 620 x 1000 mm	1,000 mm	620 mm	50 mm
No stock item (MOQ)	931636	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 20 x 1000 mm	1,000 mm		20 mm
No stock item (MOQ)	932248	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 80 x 3000 mm	3,000 mm		80 mm
No stock item (MOQ)	932249	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 80 x 1000 mm	1,000 mm		80 mm
No stock item (MOQ)	932863	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	45 x 620 x 3000 mm	3,000 mm	620 mm	45 mm
No stock item (MOQ)	933912	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	35 x 620 x 3000 mm	3,000 mm	620 mm	35 mm
No stock item (MOQ)	933913	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	30 x 620 x 3000 mm	3,000 mm	620 mm	30 mm
No stock item (MOQ)	934081	Sustason® PPSU MG grey extruded	rod	rod	GY1037 grey, similar RAL 7004	Ø 55 x 3000 mm	3,000 mm		55 mm
No stock item (MOQ)	934425	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	35 x 620 x 1000 mm	1,000 mm	620 mm	35 mm
No stock item (MOQ)	934464	Sustason® PPSU MG grey extruded	sheet	sheet	GY1037 grey, similar RAL 7004	30 x 620 x 1000 mm	1,000 mm	620 mm	30 mm

Technical Specifications Sustason® PPSU MG grey

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,29
Water absorption	DIN EN ISO 62	%	0,6
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	77
Elongation at break	DIN EN ISO 527	%	30
Tensile modulus of elasticity	DIN EN ISO 527	MPa	2500
Notched impact strength	DIN EN ISO 179	kJ / m²	10

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	-
Glass transition temperature	ISO 11357-3	°C	220
Thermal conductivity	DIN 52612-1	W / (m * K)	0,35
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	55
Service temperature, long term	Average	°C	-50 … 180
Service temperature, short term (max.)	Average	°C	210
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	205

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,44
Volume resistivity	DIN EN 62631-3-1	Ω * cm	10¹⁵
Dielectric strength	IEC 60243	kV / mm	15

Downloads

Technical Data Sheet Sustason® PPSU MG grey

Flyer Sustason® PPSU MG grey

Product Handling Information Sheet Sustason® PPSU MG grey

FDA Compliance Sustason® PPSU MG grey

RI_Healthcare_Brochure.pdf

Medical Device Regulation (EU) 2017/745

Sustason PPSU MG semi-finished products
