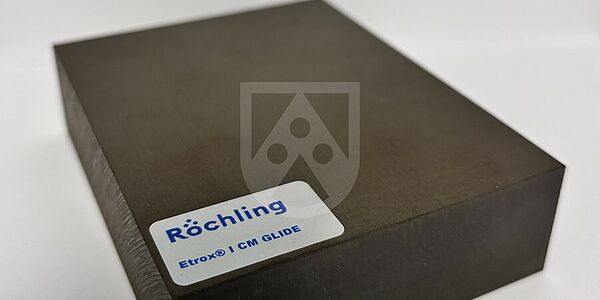

EtroX® I CM GLIDE
PI
natural
sheet
Characteristics
- Good sliding properties
- Low moisture absorption
- High temperature resistance
- High stiffness even at high temperatures
- High heat deflection temperature
- high dimensional stability under heat
- Good wear resistance
Variants
Technical Specifications EtroX® I CM GLIDE
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,50 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | 3,0 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3200 |
| Tensile strength | DIN EN ISO 527 | MPa | 50,0 |
| Notched impact strength | ISO 179-1/1eA | kJ / m2 | 2 |
| Shore hardness | DIN EN ISO 868 | scale D | 85 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 190 |
| Elastic modulus of compression | DIN EN ISO 604 | MPa | 3500 |
