Sustamid® 6 FR natural

PA — PA 6

Polyamide with built-in fire protection

An economic solution for small up to medium quantities

Are you searching for a flame - retardant material which is comparable to a high-performance plastic such as PEEK and fulfils all needed requirements you need on the international railway market, beginning with the V0 in accordance to the UL 94 and especially the European standard EN 45545? Sustamid® 6 FR is the solution for extruded semi-finished products made of flame-retardant polyamide 6 (PA 6). It is available as sheets, rods and tubes.

natural
sheetrod
QR-Code

Characteristics

  • Free of halogen and phosphorus
  • Flame retardant
  • Self-extinguishing
  • High hardness
  • High rigidity
  • Good sliding properties
  • Good wear properties
  • Good machinability
  • Good dimensional stability
  • Certified according to EN 45545-2

Industries

Application Examples

+

Sustamid® 6FR 소재 케이블 클램프

Sustamid® 6 FR(PA6) 소재는 철도차량 표준 DIN EN 45545-2:2013의 관련 요구 사항을 충족하며, 압출 성형 반제품으로서 철도차량용 케이블 클램프와 같은 대규모 가공 부품을 소량 제조할 수 있습니다.

+

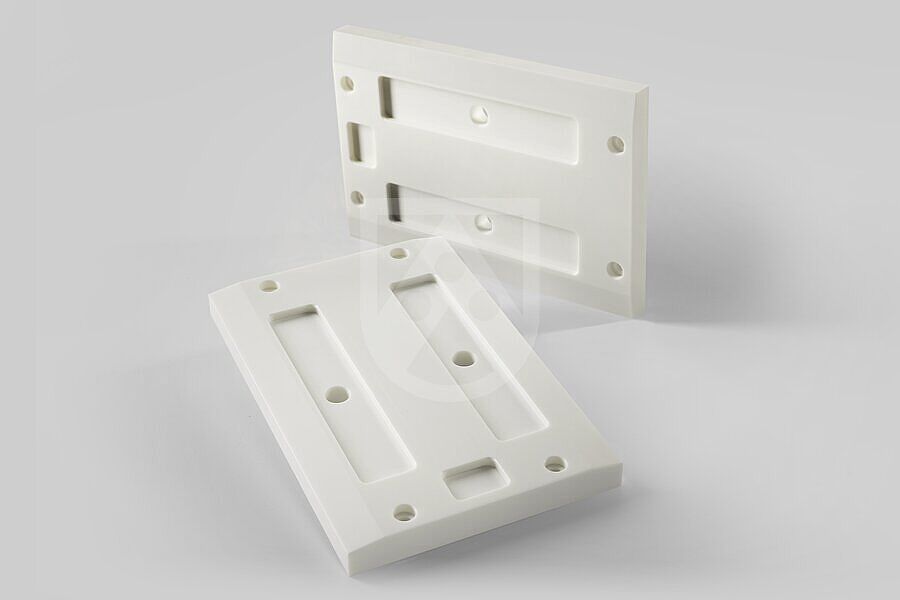

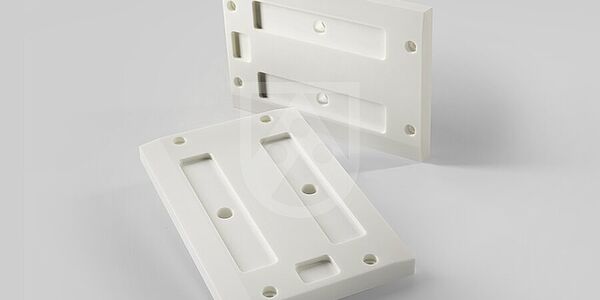

분기기용 Sustamid® 6 FR 소재 웨지 및 스페이서 플레이트

분기기용 내화성 Sustamid® 6 FR로 엄격한 공차 범위에 따라 제작된 가공된 웨지 및 스페이서 플레이트는 효율적이고 유지관리 비용이 낮은 레일 시스템을 설계하는 데 도움이 됩니다.

+

Application areas

Ideal material for applications where very high demands are placed on fire behavior, mechanical properties and weight.

+

Certifications

Sustamid® 6 FR fulfills a large number of certifications, such as EN 45545, BS 6859, DIN 5510, BSS 7239, NFPA130, UL 94 (V0) and others.

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		601142Sustamid® 6 FR natural extruded sheet sheet natural16 x 620 x 2000 mm 2,000 mm 620 mm 16 mm
No stock item (MOQ)		607755Sustamid® 6 FR natural extruded rod rod naturalØ 70 x 1000 mm 1,000 mm 70 mm
No stock item (MOQ)		611763Sustamid® 6 FR natural extruded sheet sheet natural12 x 620 x 2000 mm 2,000 mm 620 mm 12 mm
No stock item (MOQ)		639851Sustamid® 6 FR natural extruded rod rod naturalØ 12 x 1000 mm 1,000 mm 12 mm
No stock item (MOQ)		641068Sustamid® 6 FR natural extruded sheet sheet natural25 x 620 x 2000 mm 2,000 mm 620 mm 25 mm
No stock item (MOQ)		645190Sustamid® 6 FR natural extruded sheet sheet natural30 x 620 x 2000 mm 2,000 mm 620 mm 30 mm
No stock item (MOQ)		645191Sustamid® 6 FR natural extruded sheet sheet natural50 x 620 x 2000 mm 2,000 mm 620 mm 50 mm
No stock item (MOQ)		649278Sustamid® 6 FR natural extruded rod rod naturalØ 16 x 1000 mm 1,000 mm 16 mm
No stock item (MOQ)		651649Sustamid® 6 FR natural extruded rod rod naturalØ 20 x 1000 mm 1,000 mm 20 mm
No stock item (MOQ)		656624Sustamid® 6 FR natural extruded sheet sheet natural8 x 620 x 2000 mm 2,000 mm 620 mm 8 mm
No stock item (MOQ)		660318Sustamid® 6 FR natural extruded sheet sheet natural35 x 620 x 2000 mm 2,000 mm 620 mm 35 mm
No stock item (MOQ)		665163Sustamid® 6 FR natural extruded sheet sheet natural30 x 500 x 3000 mm 3,000 mm 500 mm 30 mm
No stock item (MOQ)		665167Sustamid® 6 FR natural extruded sheet sheet natural30 x 500 x 1000 mm 1,000 mm 500 mm 30 mm
No stock item (MOQ)		667984Sustamid® 6 FR natural extruded sheet sheet natural70 x 620 x 3000 mm 3,000 mm 620 mm 70 mm
No stock item (MOQ)		667993Sustamid® 6 FR natural extruded sheet sheet natural70 x 620 x 2000 mm 2,000 mm 620 mm 70 mm
No stock item (MOQ)		667995Sustamid® 6 FR natural extruded sheet sheet natural70 x 620 x 1000 mm 1,000 mm 620 mm 70 mm
No stock item (MOQ)		675001Sustamid® 6 FR natural extruded sheet sheet natural25 x 500 x 3000 mm 3,000 mm 500 mm 25 mm
No stock item (MOQ)		679535Sustamid® 6 FR natural extruded sheet sheet natural16 x 500 x 3000 mm 3,000 mm 500 mm 16 mm
No stock item (MOQ)		683267Sustamid® 6 FR natural extruded sheet sheet natural25 x 500 x 1000 mm 1,000 mm 500 mm 25 mm
No stock item (MOQ)		683598Sustamid® 6 FR natural extruded sheet sheet natural10 x 620 x 2000 mm 2,000 mm 620 mm 10 mm
No stock item (MOQ)		704204Sustamid® 6 FR natural extruded sheet sheet natural60 x 620 x 2000 mm 2,000 mm 620 mm 60 mm
No stock item (MOQ)		704296Sustamid® 6 FR natural extruded sheet sheet natural60 x 500 x 3000 mm 3,000 mm 500 mm 60 mm
No stock item (MOQ)		705520Sustamid® 6 FR natural extruded sheet sheet natural50 x 500 x 1000 mm 1,000 mm 500 mm 50 mm
No stock item (MOQ)		705542Sustamid® 6 FR natural extruded sheet sheet natural60 x 500 x 1000 mm 1,000 mm 500 mm 60 mm
No stock item (MOQ)		712816Sustamid® 6 FR natural extruded sheet sheet natural40 x 620 x 2000 mm 2,000 mm 620 mm 40 mm
No stock item (MOQ)		714849Sustamid® 6 FR natural extruded sheet sheet natural8 x 500 x 3000 mm 3,000 mm 500 mm 8 mm
No stock item (MOQ)		716617Sustamid® 6 FR natural extruded rod rod naturalØ 16 x 2000 mm 2,000 mm 16 mm
No stock item (MOQ)		721218Sustamid® 6 FR natural extruded sheet sheet natural10 x 500 x 1000 mm 1,000 mm 500 mm 10 mm
No stock item (MOQ)		721220Sustamid® 6 FR natural extruded sheet sheet natural10 x 500 x 3000 mm 3,000 mm 500 mm 10 mm
No stock item (MOQ)		721949Sustamid® 6 FR natural extruded sheet sheet natural12 x 500 x 3000 mm 3,000 mm 500 mm 12 mm
No stock item (MOQ)		737724Sustamid® 6 FR natural extruded rod rod naturalØ 70 x 2000 mm 2,000 mm 70 mm
No stock item (MOQ)		902961Sustamid® 6 FR natural extruded rod rod naturalØ 80 x 2000 mm 2,000 mm 80 mm
Stock item (no MOQ)		920326Sustamid® 6 FR natural extruded sheet sheet natural8 x 620 x 3000 mm 3,000 mm 620 mm 8 mm
Stock item (no MOQ)		920327Sustamid® 6 FR natural extruded sheet sheet natural20 x 620 x 3000 mm 3,000 mm 620 mm 20 mm
Stock item (no MOQ)		920328Sustamid® 6 FR natural extruded sheet sheet natural50 x 620 x 3000 mm 3,000 mm 620 mm 50 mm
No stock item (MOQ)		920499Sustamid® 6 FR natural extruded sheet sheet natural20 x 620 x 1000 mm 1,000 mm 620 mm 20 mm
No stock item (MOQ)		920712Sustamid® 6 FR natural extruded sheet sheet natural8 x 620 x 1000 mm 1,000 mm 620 mm 8 mm
Stock item (no MOQ)		921462Sustamid® 6 FR natural extruded rod rod naturalØ 60 x 3000 mm 3,000 mm 60 mm
No stock item (MOQ)		921617Sustamid® 6 FR natural extruded sheet sheet natural30 x 620 x 1000 mm 1,000 mm 620 mm 30 mm
Stock item (no MOQ)		921618Sustamid® 6 FR natural extruded sheet sheet natural30 x 620 x 3000 mm 3,000 mm 620 mm 30 mm
No stock item (MOQ)		921712Sustamid® 6 FR natural extruded sheet sheet natural16 x 620 x 1000 mm 1,000 mm 620 mm 16 mm
No stock item (no MOQ)		921713Sustamid® 6 FR natural extruded sheet sheet natural16 x 620 x 3000 mm 3,000 mm 620 mm 16 mm
No stock item (MOQ)		921760Sustamid® 6 FR natural extruded sheet sheet natural12 x 620 x 3000 mm 3,000 mm 620 mm 12 mm
No stock item (MOQ)		921765Sustamid® 6 FR natural extruded sheet sheet natural12 x 620 x 1000 mm 1,000 mm 620 mm 12 mm
No stock item (MOQ)		921911Sustamid® 6 FR natural extruded rod rod naturalØ 40 x 3000 mm 3,000 mm 40 mm
No stock item (MOQ)		922050Sustamid® 6 FR natural extruded rod rod naturalØ 60 x 1000 mm 1,000 mm 60 mm
No stock item (MOQ)		922731Sustamid® 6 FR natural extruded rod rod naturalØ 40 x 1000 mm 1,000 mm 40 mm
No stock item (MOQ)		922733Sustamid® 6 FR natural extruded rod rod naturalØ 12 x 3000 mm 3,000 mm 12 mm
No stock item (MOQ)		922735Sustamid® 6 FR natural extruded rod rod naturalØ 16 x 3000 mm 3,000 mm 16 mm
No stock item (MOQ)		922736Sustamid® 6 FR natural extruded rod rod naturalØ 30 x 1000 mm 1,000 mm 30 mm
Stock item (no MOQ)		922737Sustamid® 6 FR natural extruded rod rod naturalØ 30 x 3000 mm 3,000 mm 30 mm
No stock item (MOQ)		922738Sustamid® 6 FR natural extruded rod rod naturalØ 80 x 1000 mm 1,000 mm 80 mm
No stock item (no MOQ)		922739Sustamid® 6 FR natural extruded rod rod naturalØ 80 x 3000 mm 3,000 mm 80 mm
No stock item (MOQ)		922857Sustamid® 6 FR natural extruded sheet sheet natural90 x 620 x 2000 mm 2,000 mm 620 mm 90 mm
No stock item (MOQ)		923294Sustamid® 6 FR natural extruded sheet sheet natural40 x 620 x 1000 mm 1,000 mm 620 mm 40 mm
Stock item (no MOQ)		924064Sustamid® 6 FR natural extruded sheet sheet natural40 x 620 x 3000 mm 3,000 mm 620 mm 40 mm
Stock item (no MOQ)		924209Sustamid® 6 FR natural extruded sheet sheet natural25 x 620 x 3000 mm 3,000 mm 620 mm 25 mm
No stock item (MOQ)		924210Sustamid® 6 FR natural extruded sheet sheet natural25 x 620 x 1000 mm 1,000 mm 620 mm 25 mm
No stock item (MOQ)		924472Sustamid® 6 FR natural extruded sheet sheet natural50 x 620 x 1000 mm 1,000 mm 620 mm 50 mm
No stock item (MOQ)		924962Sustamid® 6 FR natural extruded rod rod naturalØ 70 x 3000 mm 3,000 mm 70 mm
No stock item (MOQ)		925040Sustamid® 6 FR natural extruded sheet sheet natural20 x 620 x 2000 mm 2,000 mm 620 mm 20 mm
No stock item (MOQ)		925835Sustamid® 6 FR natural extruded sheet sheet natural10 x 620 x 1000 mm 1,000 mm 620 mm 10 mm
Stock item (no MOQ)		925949Sustamid® 6 FR natural extruded rod rod naturalØ 50 x 3000 mm 3,000 mm 50 mm
No stock item (MOQ)		925950Sustamid® 6 FR natural extruded rod rod naturalØ 50 x 1000 mm 1,000 mm 50 mm
Stock item (no MOQ)		926090Sustamid® 6 FR natural extruded rod rod naturalØ 20 x 3000 mm 3,000 mm 20 mm
Stock item (no MOQ)		926467Sustamid® 6 FR natural extruded sheet sheet natural10 x 620 x 3000 mm 3,000 mm 620 mm 10 mm
No stock item (MOQ)		926573Sustamid® 6 FR natural extruded sheet sheet natural90 x 620 x 1000 mm 1,000 mm 620 mm 90 mm
No stock item (MOQ)		926846Sustamid® 6 FR natural extruded rod rod naturalØ 10 x 3000 mm 3,000 mm 10 mm
Stock item (no MOQ)		927177Sustamid® 6 FR natural extruded sheet sheet natural60 x 620 x 3000 mm 3,000 mm 620 mm 60 mm
No stock item (MOQ)		927178Sustamid® 6 FR natural extruded sheet sheet natural60 x 620 x 1000 mm 1,000 mm 620 mm 60 mm
No stock item (MOQ)		927354Sustamid® 6 FR natural extruded sheet sheet natural35 x 620 x 1000 mm 1,000 mm 620 mm 35 mm
No stock item (MOQ)		927355Sustamid® 6 FR natural extruded sheet sheet natural35 x 620 x 3000 mm 3,000 mm 620 mm 35 mm
No stock item (MOQ)		927748Sustamid® 6 FR natural extruded sheet sheet natural45 x 620 x 3000 mm 3,000 mm 620 mm 45 mm
No stock item (MOQ)		927999Sustamid® 6 FR natural extruded sheet sheet natural45 x 620 x 1000 mm 1,000 mm 620 mm 45 mm
No stock item (MOQ)		929380Sustamid® 6 FR natural extruded sheet sheet natural15 x 620 x 1000 mm 1,000 mm 620 mm 15 mm
No stock item (MOQ)		933653Sustamid® 6 FR natural extruded sheet sheet natural90 x 500 x 1000 mm 1,000 mm 500 mm 90 mm
No stock item (MOQ)		933654Sustamid® 6 FR natural extruded sheet sheet natural90 x 500 x 2000 mm 2,000 mm 500 mm 90 mm

Technical Specifications Sustamid® 6 FR natural

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,17
Water absorptionDIN EN ISO 62%3,0
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0

Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa82
Elongation at breakDIN EN ISO 527%3
Tensile modulus of elasticityDIN EN ISO 527MPa3800
Shore hardnessDIN EN ISO 868scale D83

Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C222
Thermal capacityDIN 52612kJ / (kg * K)1,70
Coefficient of linear thermal expansionDIN 5375210-6 / K90
Service temperature, long termAverage°C-20 … 85
Service temperature, short term (max.)Average°C160
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C65

Test MethodUnitGuideline Value
Volume resistivityDIN EN 62631-3-1Ω * cm1013
Surface resistivityDIN EN 62631-3-2Ω1016

Downloads

Technical Data Sheet Sustamid® 6 FR natural

Product Handling Information Sheet Sustamid® 6 FR natural

Flyer - Sustamid 6 FR High Peak UK - EN
Flyer - Sustamid 6 FR - DE
Flyer - Sustamid 6 FR - EN
