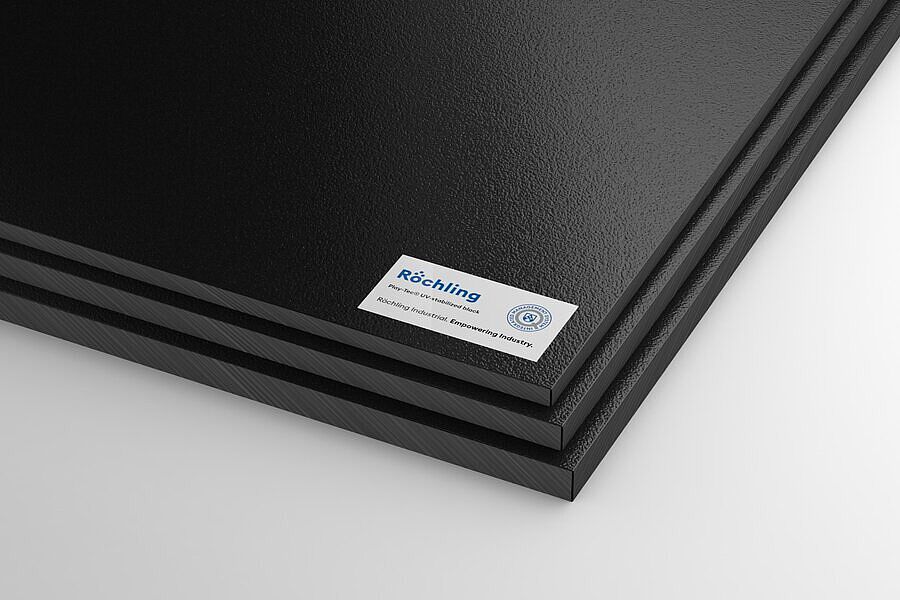

Play-Tec® UV-stabilized black
PE — PE-HD - PE 300
Playground material - Play areas: safe, long-lasting and colourful with Play-Tec®
Children love to play and charge around and are eager to discover the world. Play areas are the ideal place for developing their motor and social skills. For parents, though, the most important thing is that the play equipment must be both safe and suitable for children, so they can feel safe while letting their little ones enjoy new experiences. When planning and designing play areas, designers must take this into account from the very start.
That's why we developed the playground material Play-Tec® specifically for the design of play areas. Play-Tec® meets the high requirements placed on
- Safety
- Longevity
- Appearance
black, similar RAL 9005
sheet
Characteristics
- Physiologically safe
- UV-stabilized and colourfast
- Good machinability
- UV-resistant
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 100663 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 2.440 x 1.220 x 19 mm | 2 440 mm | 1 220 mm | 19 mm | ||
| No stock item (MOQ) | 333252 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 3.000 x 1.500 x 20 mm | 3 000 mm | 1 500 mm | 20 mm | ||
| No stock item (MOQ) | 352373 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 2.440 x 1.220 x 19 mm | 2 440 mm | 1 220 mm | 19 mm | ||
| No stock item (MOQ) | 451148 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 2.440 x 1.220 x 19 mm | 2 440 mm | 1 220 mm | 19 mm |
Technical Specifications Play-Tec® UV-stabilized black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,96 |
| Water absorption | DIN EN ISO 62 | % | <0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Flammability (Thickness 3 - 10 mm) | DIN 4102 | B2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >23 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1100 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | >10 |
| Shore hardness | DIN EN ISO 868 | scale D | >60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -30 … 80 |
| Service temperature, short term (max.) | Average | °C | 100 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 67 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,4 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,0004 | |
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
