Sustarin® C orange
POM-C
The construction material for many applications
Sustarin® C is the brand name for semi-finished products and profiles made from polyacetal copolymer. The special feature of Sustarin® C is the ideal combination of strength, rigidity, and toughness, which is due to the structure of the product. Due to its high crystallinity, Sustarin® C is stiffer and stronger than other thermoplastics, especially in the temperature range of -50°C bis +100°C.
pure orange, similar RAL 2004luminous orange, similar RAL 2005bright red orange, similar RAL 2008

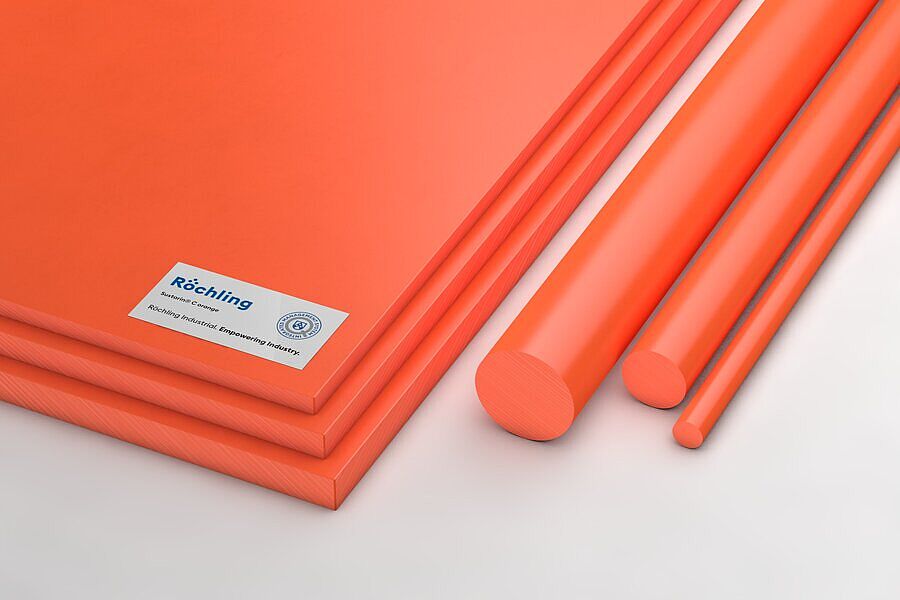

rodsheet
Characteristics
- Chemical resistant
- Low moisture absorption
- High abrasion resistance
- High tensile strength
- High stiffness
- Good impact strength
- Low creep tendency
- Good machinability
- Good electrical properties
- Good dielectric properties
- Good dimensional stability
- Good sliding properties
Industries
Food Industry- Meat, Fish and Poultry Processing
- Bakery and Confectionery
Sustainability
- LCA available (ISO 14040/44)
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 750132 | Sustarin® C orange extruded | rod | rod | pure orange, similar RAL 2004 | Ø 40 x 3000 mm | 3 000 mm | 40 mm | |||
| No stock item (MOQ) | 750133 | Sustarin® C orange extruded | rod | rod | pure orange, similar RAL 2004 | Ø 40 x 1000 mm | 1 000 mm | 40 mm | |||
| No stock item (MOQ) | 750400 | Sustarin® C orange extruded | rod | rod | luminous orange, similar RAL 2005 | Ø 20 x 3000 mm | 3 000 mm | 20 mm | |||
| No stock item (MOQ) | 750402 | Sustarin® C orange extruded | rod | rod | luminous orange, similar RAL 2005 | Ø 20 x 1000 mm | 1 000 mm | 20 mm | |||
| No stock item (MOQ) | 764813 | Sustarin® C orange extruded | rod | rod | pure orange, similar RAL 2004 | Ø 50 x 3000 mm | 3 000 mm | 50 mm | |||
| No stock item (MOQ) | 764815 | Sustarin® C orange extruded | rod | rod | pure orange, similar RAL 2004 | Ø 50 x 1000 mm | 1 000 mm | 50 mm | |||
| No stock item (MOQ) | 795858 | Sustarin® C orange extruded | sheet | sheet | pure orange, similar RAL 2004 | 50 x 620 x 3000 mm | 3 000 mm | 620 mm | 50 mm | ||
| No stock item (MOQ) | 809658 | Sustarin® C orange extruded | rod | rod | bright red orange, similar RAL 2008 | Ø 30 x 3000 mm | 3 000 mm | 30 mm | |||
| No stock item (MOQ) | 809659 | Sustarin® C orange extruded | rod | rod | bright red orange, similar RAL 2008 | Ø 30 x 1000 mm | 1 000 mm | 30 mm | |||
| No stock item (MOQ) | 927830 | Sustarin® C orange extruded | rod | rod | pure orange, similar RAL 2004 | Ø 30 x 3000 mm | 3 000 mm | 30 mm | |||
| No stock item (MOQ) | 928310 | Sustarin® C orange extruded | rod | rod | pure orange, similar RAL 2004 | Ø 30 x 1000 mm | 1 000 mm | 30 mm | |||
| No stock item (MOQ) | 929263 | Sustarin® C orange extruded | rod | rod | luminous orange, similar RAL 2005 | Ø 25 x 3000 mm | 3 000 mm | 25 mm | |||
| No stock item (MOQ) | 929613 | Sustarin® C orange extruded | rod | rod | luminous orange, similar RAL 2005 | Ø 25 x 1000 mm | 1 000 mm | 25 mm | |||
| No stock item (MOQ) | 930454 | Sustarin® C orange extruded | sheet | sheet | pure orange, similar RAL 2004 | 10 x 620 x 3000 mm | 3 000 mm | 620 mm | 10 mm | ||
| No stock item (MOQ) | 930455 | Sustarin® C orange extruded | sheet | sheet | pure orange, similar RAL 2004 | 25 x 620 x 3000 mm | 3 000 mm | 620 mm | 25 mm | ||
| No stock item (MOQ) | 934013 | Sustarin® C orange extruded | rod | rod | bright red orange, similar RAL 2008 | Ø 140 x 1000 mm | 1 000 mm | 140 mm | |||
| No stock item (MOQ) | 934041 | Sustarin® C orange extruded | sheet | sheet | bright red orange, similar RAL 2008 | 60 x 620 x 3000 mm | 3 000 mm | 620 mm | 60 mm | ||
| No stock item (MOQ) | 934237 | Sustarin® C orange extruded | sheet | sheet | bright red orange, similar RAL 2008 | 60 x 620 x 1000 mm | 1 000 mm | 620 mm | 60 mm |
Technical Specifications Sustarin® C orange
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,41 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 67 |
| Elongation at break | DIN EN ISO 527 | % | 30 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2800 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 6 |
| Shore hardness | DIN EN ISO 868 | scale D | 81 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 165 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,31 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,50 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 110 |
| Service temperature, long term | Average | °C | -50 … 100 |
| Service temperature, short term (max.) | Average | °C | 140 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 110 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,8 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,002 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1013 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1013 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | 40 |
