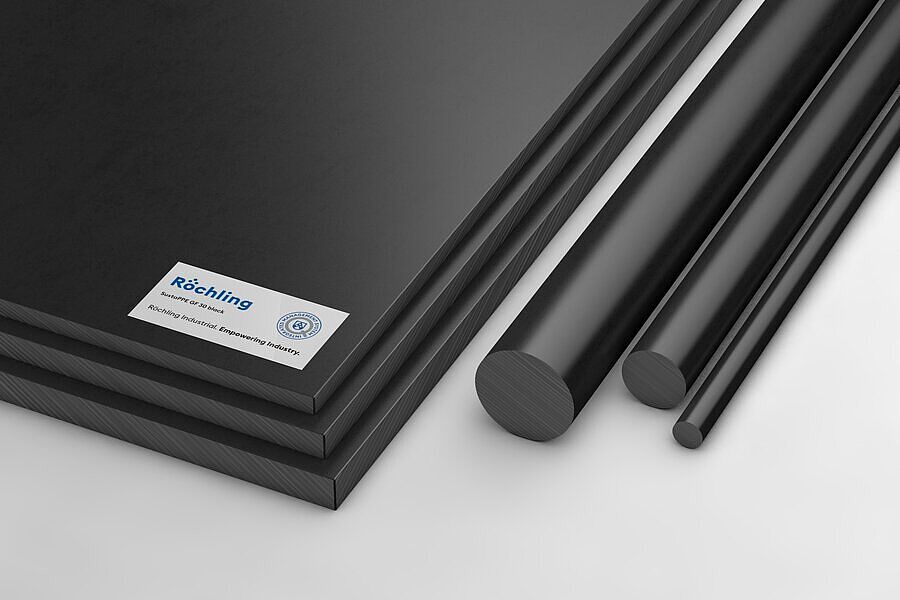

SustaPPE GF 30 black
PPE
Glas Fibre reinforced Polyphenylene Ether
SustaPPE GF30 (PPE GF30) is an engineering thermoplastic material made of polyphenylene ether reinforced with 30% glass fibers. The glass fiber reinforcement ensures high mechanical strength, good dimensional stability, and improved heat resistance. The combination of stiffness, strength, and low creep tendency makes it ideal for components under continuous mechanical and thermal stress.
black
rod
Characteristics
- High stiffness
- Low creep tendency
- Low moisture absorption
- Low specific weight
- high dimensional stability under heat
- Electrically insulating
- Good dimensional stability
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 630502 | SustaPPE GF 30 black extruded | rod | rod | black | Ø 60 x 2000 mm | 2.000 mm | 60 mm | |||
| No stock item (MOQ) | 930105 | SustaPPE GF 30 black extruded | rod | rod | black | Ø 60 x 3000 mm | 3.000 mm | 60 mm | |||
| No stock item (MOQ) | 930330 | SustaPPE GF 30 black extruded | rod | rod | black | Ø 60 x 1000 mm | 1.000 mm | 60 mm |
Technical Specifications SustaPPE GF 30 black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,30 |
| Water absorption | DIN EN ISO 62 | % | 0,0 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 70 |
| Elongation at break | DIN EN ISO 527 | % | 3 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 4500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 5 |
| Shore hardness | DIN EN ISO 868 | scale D | 87 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | - |
| Glass transition temperature | ISO 11357-3 | °C | 150 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,30 |
| Service temperature, long term | Average | °C | -20 … 100 |
| Service temperature, short term (max.) | Average | °C | 110 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 135 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1015 |
| Dielectric strength | IEC 60243 | kV / mm | 25 |
